QCV-271+ - Mini-Circuits

Description: RF Power Divider 150 MHz ~ 265 MHz Isolation (Min) 16dB, 8° Imbalance (Max) 6-SMD, No Lead

Download QCV-271+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

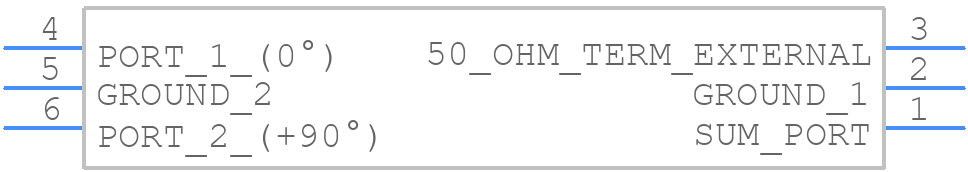

QCV-271+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
QCV-271+ - Mini-Circuits PCB footprint - Other - Other - QCV-271+-2
click to zoom
3D Models
QCV-271+ - Mini-Circuits - 3D model - Other - QCV-271+-2
click to zoom

QCV-271+ Details

  • Manufacturer Part Number:

    QCV-271+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.25

  • Additional Feature:

    ISOLATION-MIN (DB):14

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    14 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    265 MHz

  • Operating Frequency-Min:

    150 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    SOLCC6,.1,40

  • RF/Microwave Device Type:

    SPLITTER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.5

QCV-271+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The QCV-271+ requires a bias voltage of +15V to +25V and a bias current of 10mA to 20mA. It's recommended to use a voltage regulator and a current limiter to ensure stable biasing. Additionally, the bias voltage should be decoupled with a 10nF capacitor to reduce noise.
  • The QCV-271+ can handle up to 1W of RF power. However, it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize the risk of overheating.
  • The QCV-271+ has an input impedance of 50Ω and an output impedance of 50Ω. To match the impedance, use a π-network or a T-network of resistors, capacitors, and inductors. Mini-Circuits provides a matching network design guide in their application note AN-60-013.
  • The QCV-271+ operates over a temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +60°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QCV-271+ Overview

Use the download button to access the QCV-271+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QCV-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
