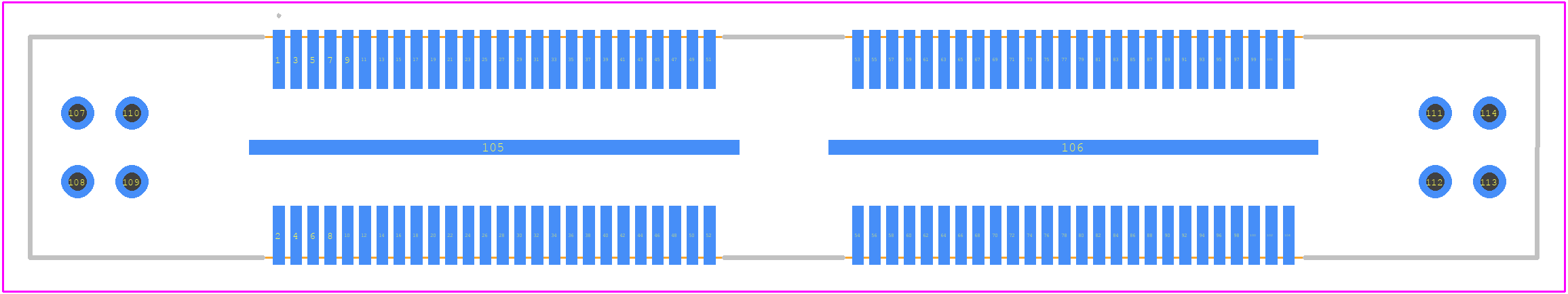

QFS-052-04.25-L-D-PT4 - SAMTEC

QFS-052-04.25-L-D-PT4 Details

• Manufacturer Part Number:

  QFS-052-04.25-L-D-PT4

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Costa Rica, Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  2 Weeks, 3 Days

• Manufacturer:

  Samtec Inc

• YTEOL:

  8

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS IS 2 MM, Q2

• Body Breadth:

  0.32 inch

• Body Depth:

  0.293 inch

• Body Length:

  2.187 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Arrangement:

  S104P8

• Contact Finish Mating:

  GOLD

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  HYBRID

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  900VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  0.294 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.025 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  GUIDE PIN

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.48 mm

• Plating Thickness:

  10u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Power):

  4 A

• Rated Current (Signal):

  2.6 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.635 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  112

• Withdrawl Force-Min:

  0.294 N
