Samtec provides a recommended PCB layout and land pattern in their application notes or design files, which can be downloaded from their website. It's essential to follow these guidelines to ensure proper mating and minimize signal integrity issues.
Yes, the QFSS-016-04.25-L-D-DP-A is designed for high-speed signal applications, with a bandwidth of up to 40 Gbps. However, it's crucial to follow proper signal integrity design practices and consider factors like trace length, impedance, and termination to ensure signal quality.
The QFSS-016-04.25-L-D-DP-A has an operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure that the connector is used within its recommended operating range.
Yes, the QFSS-016-04.25-L-D-DP-A is compatible with lead-free soldering processes. Samtec uses lead-free materials and manufacturing processes to ensure compliance with RoHS and other environmental regulations.
The QFSS-016-04.25-L-D-DP-A has a mating cycle life of 500 cycles minimum. However, this can vary depending on the specific application, usage, and environmental conditions. It's essential to consider the mating cycle life when designing and specifying the connector for a particular application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QFSS-016-04.25-L-D-DP-A Overview

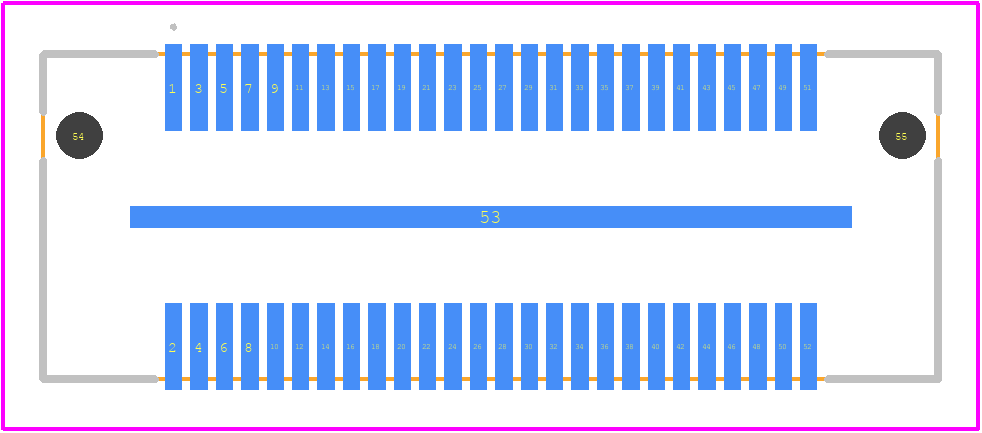

Use the download button to access the QFSS-016-04.25-L-D-DP-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QFSS-,
or try a keyword search, such as Headers and Edge Type Connectors
