QHL600300S24 footprint, schematic symbol and 3D model by XP POWER

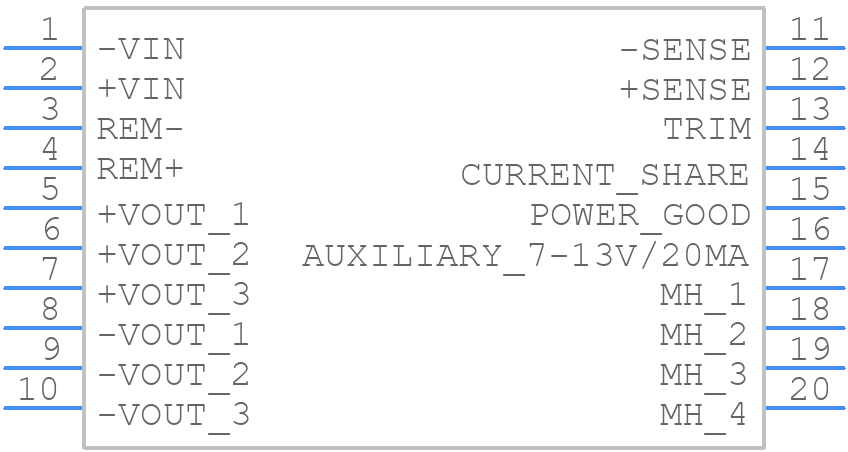

Symbol

click to zoom

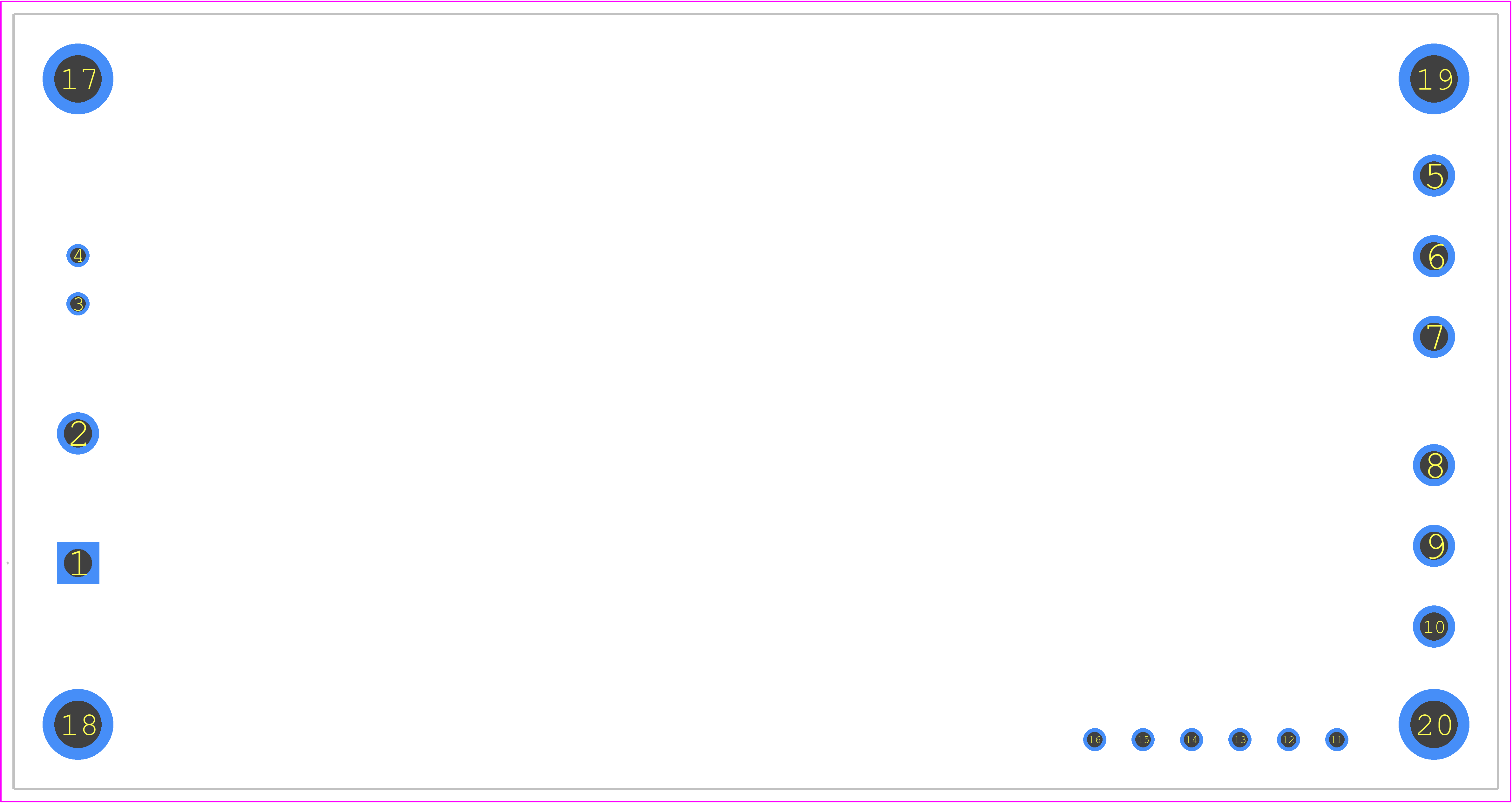

PCB Footprints

QHL600300S24 - XP POWER PCB footprint - Other - Other - 116.8 x 61 x 12.7mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QHL600300S24
Part Number QHL600300S24
Manufacturer XP POWER
Pin Count 20
Part Category Power Supply
Package Category Other
Footprint Name Other - 116.8 x 61 x 12.7mm
Released Date Apr 25, 2026
Last Modified Date Apr 25, 2026 1:58 PM UTC
Pinout / Pin List Click Here (Member Only)

QHL600300S24 Details

Manufacturer Part Number:
QHL600300S24
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
PACAKGE-16
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
DC-DC POWER FACTOR CORRECTION MODULE
Approvals:
CE, EN, UKCA, UL
Efficiency (Main Output):
90.5%
Input Voltage-Max:
425 V
Input Voltage-Min:
180 V
JESD-30 Code:
R-PXMA-P16
JESD-609 Code:
e3
Length:
116.8 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
25 A
Output Voltage-Max:
26.4 V
Output Voltage-Min:
14.4 V
Output Voltage-Nom:
24 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
XMA
Package Equivalence Code:
MODULE,16LEAD(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD, OVER TEMPERATURE, OVER VOLTAGE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.084 Vrms
Screening Level:
EN 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.7 s
Width:
61 mm

QHL600300S24 Frequently Asked Questions (FAQs)

The maximum capacitance load for the QHL600300S24 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application notes or contact their technical support for specific guidance.
The QHL600300S24 has a standard operating temperature range of -40°C to +85°C. However, derating may be required for high-temperature applications. It's recommended to consult with XP Power's application notes or contact their technical support for specific guidance on temperature derating.
The QHL600300S24 meets the requirements for 2xMOPP (Means of Patient Protection) and is suitable for medical applications. However, it's essential to ensure that the specific application meets the relevant medical safety standards, such as IEC 60601-1.
The QHL600300S24 is designed to operate in a relative humidity range of 20% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and conformal coating for high-humidity applications.
XP Power provides a recommended PCB layout and thermal management guide in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
