The recommended PCB layout for the QJ8030LH4TP involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output leads to reduce parasitic inductance and capacitance.
To ensure the reliability of the QJ8030LH4TP in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, use a suitable thermal interface material, and ensure good airflow around the device.
Yes, the QJ8030LH4TP can be used in a parallel configuration to increase the current handling capability, but it is essential to ensure that the devices are properly matched and that the PCB layout is designed to minimize current imbalance and thermal mismatch.
The recommended soldering profile for the QJ8030LH4TP involves a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp rate of 3-4°C/second to minimize thermal stress and ensure reliable solder joints.
To troubleshoot issues with the QJ8030LH4TP, it is recommended to check the input voltage, current, and temperature, verify the PCB layout and soldering quality, and consult the datasheet and application notes for guidance on troubleshooting and fault diagnosis.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QJ8030LH4TP Overview

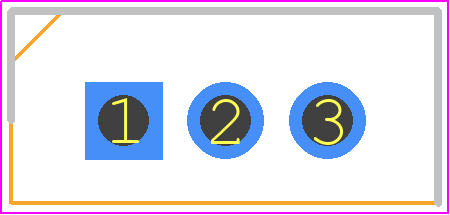

Use the download button to access the QJ8030LH4TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QJ803,
or try a keyword search, such as TRIACs
