QJ8030NH4TP - LITTELFUSE

Description: 30/35 Amp High Temperature Alternistor Triacs

Download QJ8030NH4TP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this QJ8030NH4TP model

Email notifications will be applied after download.

Send part feedback

Symbol

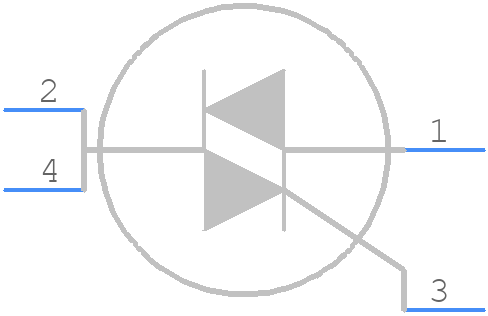

QJ8030NH4TP - LITTELFUSE - PCB symbol

PCB Footprints

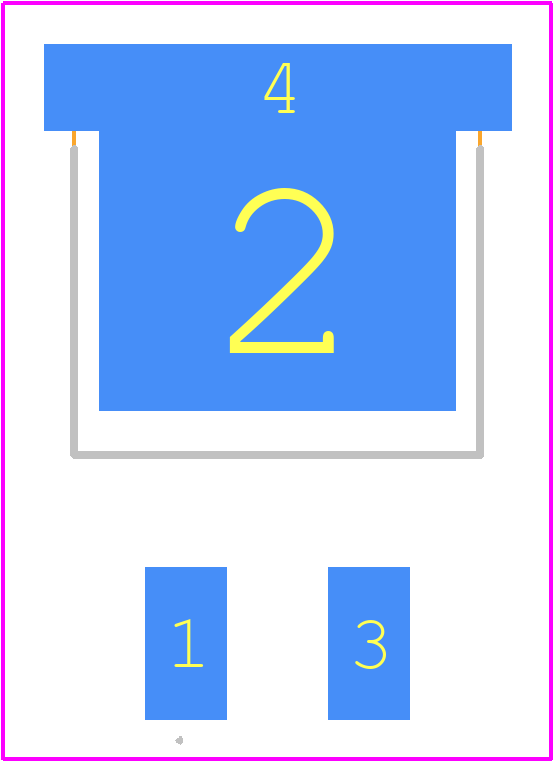

QJ8030NH4TP - LITTELFUSE PCB footprint - Other - Other - TO-263AB (N-Package) - D2-PAK Surface Mount

3D Models

QJ8030NH4TP - LITTELFUSE - 3D model - Other - TO-263AB (N-Package) - D2-PAK Surface Mount

Datasheet Download Datasheet
Stock & Prices Price & Stock for QJ8030NH4TP
Part Number QJ8030NH4TP
Manufacturer LITTELFUSE
Pin Count 4
Part Category Triac MT
Package Category Other
Footprint Name Other - TO-263AB (N-Package) - D2-PAK Surface Mount
Released Date Jan 11, 2023
Last Modified Date Jul 18, 2026 9:10 AM UTC
Pinout / Pin List Click Here (Member Only)

QJ8030NH4TP Details

Manufacturer Part Number:
QJ8030NH4TP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Littelfuse Inc
YTEOL:
6
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Matte Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
40
Trigger Device Type:
ALTERNISTOR TRIAC

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

QJ8030NH4TP Overview

Use the download button to access the QJ8030NH4TP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like QJ803, or try a keyword search, such as TRIACs
