Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The QM11022TR13-5K has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Follow Qorvo's thermal management guidelines in their application notes and datasheets.
The QM11022TR13-5K is rated for operation from -40°C to +125°C. However, it's essential to consider the derating curves and thermal management guidelines to ensure reliable operation within the specified temperature range.
The QM11022TR13-5K has a specific impedance profile. To ensure optimal performance, follow Qorvo's impedance matching guidelines in their application notes and datasheets. You may need to use impedance matching networks or tune the PCB layout to achieve the desired impedance match.
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering the QM11022TR13-5K. Ensure that the soldering process is within the specified temperature and time limits to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QM11022TR13-5K Overview

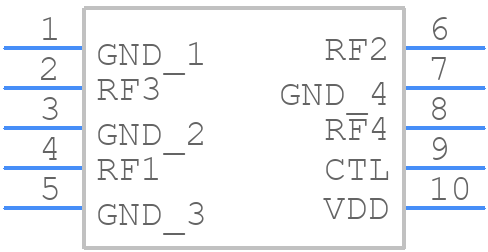

Use the download button to access the QM11022TR13-5K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM110,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
