Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
Qorvo recommends using their proprietary tool, Qorvo's RF Design Environment (RFDE), to optimize the matching network for the QM11024TR13. RFDE provides a comprehensive design environment for RF and microwave design, including matching network optimization.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power output above 70°C to ensure reliable operation and prevent thermal damage.
Qorvo recommends following their EMC guidelines, which include using proper shielding, grounding, and filtering techniques to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
Qorvo recommends using a controlled atmosphere soldering process with a peak temperature of 260°C and a dwell time of 30 seconds to ensure reliable solder joints and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QM11024TR13 Overview

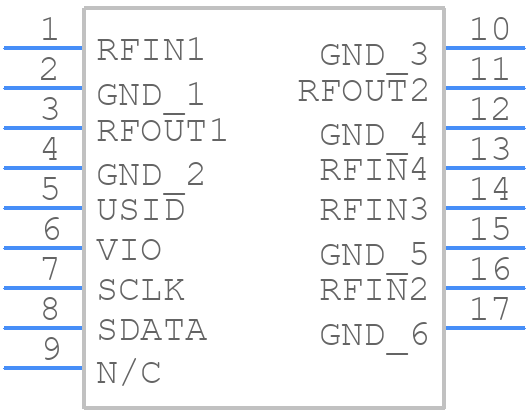

Use the download button to access the QM11024TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM110,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
