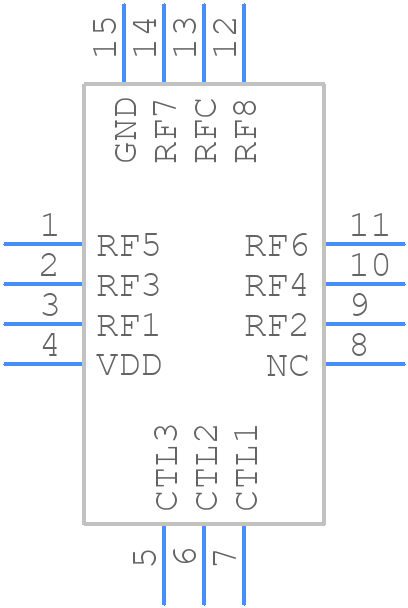

QM12038SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM12038SR - Qorvo PCB footprint - Other - Other - QM12038SR-3
click to zoom
3D Models
QM12038SR - Qorvo - 3D model - Other - QM12038SR-3
click to zoom

QM12038SR Details

  • Manufacturer Part Number:

    QM12038SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    GOLD OVER NICKEL

QM12038SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the RF traces should be kept short and away from the digital lines.
  • Use a Smith chart or a network analyzer to optimize the impedance matching. The device has a complex impedance, so a simple pi-network or L-network may not be sufficient. Consider using a more complex matching network or consulting with a RF design expert.
  • The maximum power handling of the QM12038SR is 33 dBm. Exceeding this power level may cause damage to the device or affect its performance.
  • The QM12038SR requires a bias voltage of 3.3V to 5V. Ensure that the bias voltage is stable and well-regulated, and that the device is properly decoupled from the power supply. Consult the datasheet for specific biasing requirements.
  • The operating temperature range of the QM12038SR is -40°C to 85°C. Operating the device outside this range may affect its performance or reduce its lifespan.
