QM12114TR13-5K - Qorvo

Description: 698 - 6000 MHz High Power RFFE GSM SP4T Switch

Download QM12114TR13-5K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

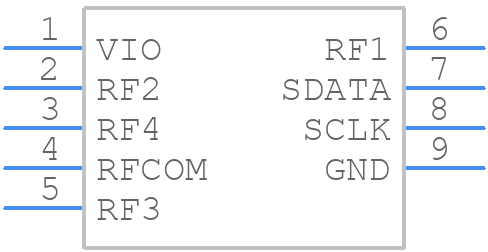

QM12114TR13-5K - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM12114TR13-5K - Qorvo PCB footprint - Other - Other - QM12114TR13-5K-1
click to zoom
3D Models
QM12114TR13-5K - Qorvo - 3D model - Other - QM12114TR13-5K-1
click to zoom

QM12114TR13-5K Details

  • Manufacturer Part Number:

    QM12114TR13-5K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2020-02-13

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.9

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    0.72 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    698 MHz

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TR, 13 INCH

  • Power Supplies:

    1.8 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    0.06 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1

QM12114TR13-5K Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. Following this layout ensures optimal performance, minimal signal loss, and reduced electromagnetic interference (EMI).
  • The QM12114TR13-5K has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Follow Qorvo's thermal management guidelines in their application note AN-2171.
  • Although the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling above 70°C to ensure reliability and prevent thermal runaway. Consult Qorvo's application note AN-2171 for more information.
  • Qorvo provides impedance matching guidelines in their application note AN-2171. Typically, a π-network or a T-network matching circuit is used to match the device's impedance to the system's impedance. Simulation tools like Qorvo's QorvoMatch or third-party tools like ADS or AWR can help with impedance matching.
  • Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering the QM12114TR13-5K. This standard outlines the recommended soldering temperature profile, soldering time, and other guidelines to ensure reliable assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QM12114TR13-5K Overview

Use the download button to access the QM12114TR13-5K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM121, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
