QM28014SB footprint, schematic symbol and 3D model by Qorvo

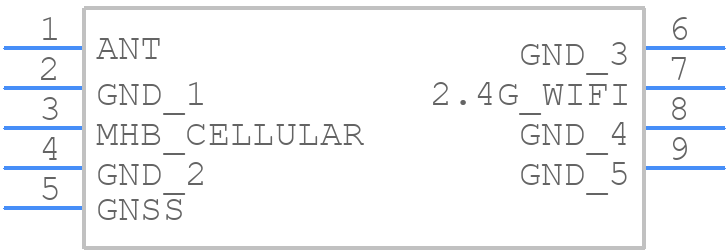

Symbol

click to zoom

PCB Footprints

QM28014SB - Qorvo PCB footprint - Other - Other - 9 Pin 2.0mm x 1.6mm x 0.6mm leadless SMT package

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QM28014SB
Part Number QM28014SB
Manufacturer Qorvo
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 9 Pin 2.0mm x 1.6mm x 0.6mm leadless SMT package
Released Date Dec 23, 2024
Last Modified Date Feb 18, 2025 5:18 PM UTC
Pinout / Pin List Click Here (Member Only)

QM28014SB Details

Manufacturer Part Number:
QM28014SB
Manufacturer:
Qorvo

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

QM28014SB Overview

Use the download button to access the QM28014SB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like QM280, or try a keyword search, such as Duplexers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
