QN9080-001-M17AZ footprint, schematic symbol and 3D model by NXP

Symbol

click to zoom

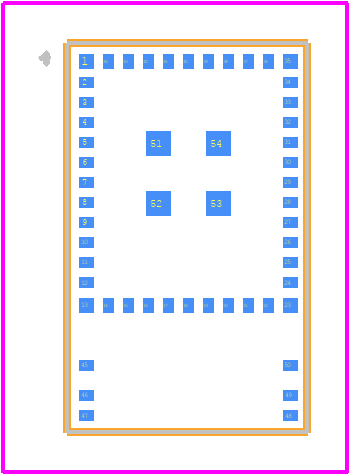

PCB Footprints

QN9080-001-M17AZ - NXP PCB footprint - Other - Other - QN9080-001-M17AZ-1

click to zoom

3D Models

QN9080-001-M17AZ - NXP - 3D model - Other - QN9080-001-M17AZ-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QN9080-001-M17AZ
Part Number QN9080-001-M17AZ
Manufacturer NXP
Pin Count 54
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QN9080-001-M17AZ-1
Released Date Jul 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

QN9080-001-M17AZ Details

Manufacturer Part Number:
QN9080-001-M17AZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LFLGA-54
ECCN Code:
5A992
HTS Code:
8517.62.00
Manufacturer:
NXP Semiconductors
YTEOL:
0
JESD-30 Code:
R-PBGA-N54
Length:
9.7 mm
Moisture Sensitivity Level:
3
Number of Terminals:
54
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Equivalence Code:
LGA54,11X13,20
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
255
Seated Height-Max:
1.24 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
1.67 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

QN9080-001-M17AZ Frequently Asked Questions (FAQs)

The recommended operating temperature range for the QN9080-001-M17AZ is -40°C to 105°C.
To configure the QN9080-001-M17AZ for optimal power consumption, use the low-power modes (e.g., sleep, deep sleep) and adjust the clock frequency and voltage regulator settings according to your application's requirements.
The maximum data transfer rate of the QN9080-001-M17AZ's BLE interface is 2 Mbps.
Yes, the QN9080-001-M17AZ can be used with an external antenna. However, ensure that the antenna is designed for the 2.4 GHz frequency band and meets the necessary regulatory requirements.
Implement secure boot and secure firmware updates on the QN9080-001-M17AZ by using the device's built-in security features, such as secure boot mechanisms and cryptographic accelerators, and following NXP's guidelines for secure firmware updates.

Trust Checks

Expert Contribution

System Verified

Community Approved

QN9080-001-M17AZ Overview

Use the download button to access the QN9080-001-M17AZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like QN908, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
