QN9080CHNY - NXP

Description: NXP - QN9080CHNY - MCU, 32BIT, 32MHZ, HVQFN-48

Download QN9080CHNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

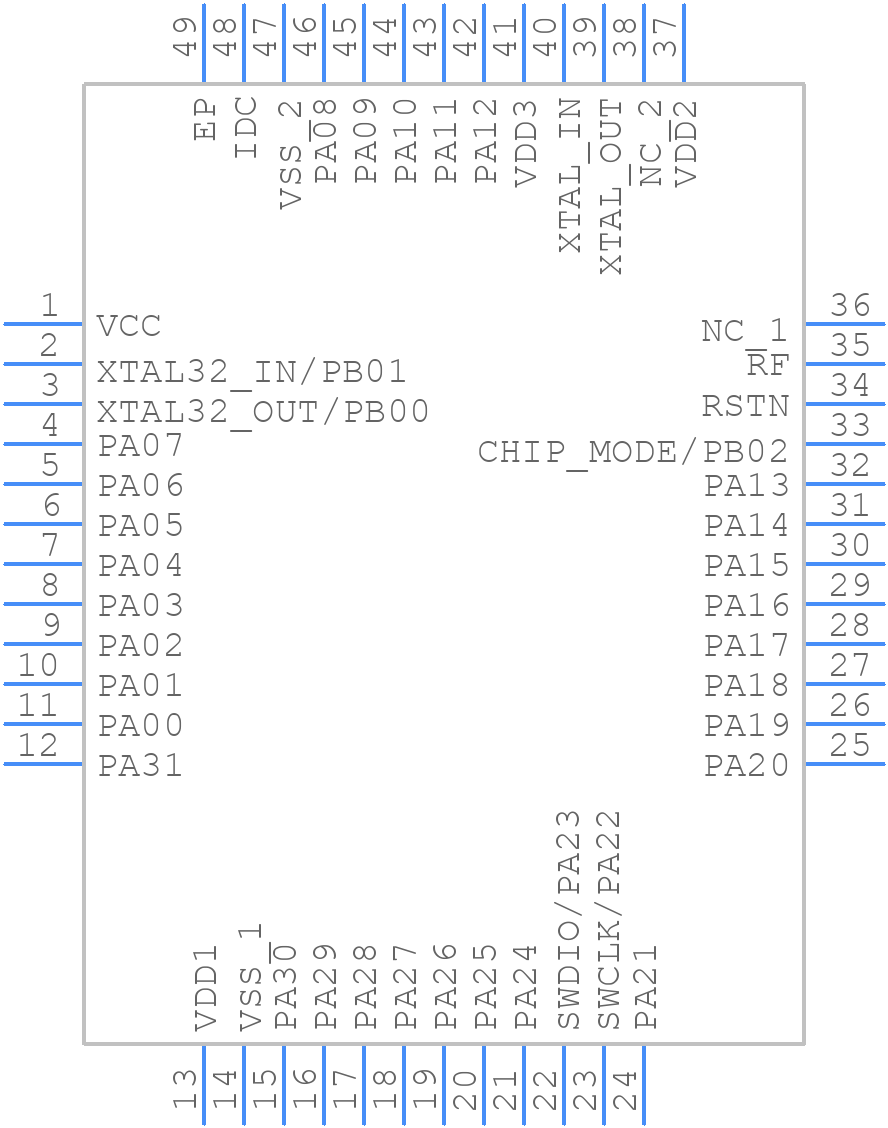

QN9080CHNY - NXP - PCB symbol
click to zoom
PCB Footprints
QN9080CHNY - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT778-7: HVQFN48
click to zoom
3D Models
QN9080CHNY - NXP - 3D model - Quad Flat No-Lead - SOT778-7: HVQFN48
click to zoom

QN9080CHNY Details

  • Manufacturer Part Number:

    QN9080CHNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

QN9080CHNY Frequently Asked Questions (FAQs)

  • The QN9080CHNY can operate in a temperature range of -40°C to 105°C.
  • To configure the QN9080CHNY for low power consumption, use the Power Management Unit (PMU) to set the power mode, clock frequency, and voltage scaling. Additionally, use the Low Power Mode (LPM) to reduce power consumption when the device is idle.
  • The maximum clock frequency of the QN9080CHNY is 64 MHz.
  • To use the ADC, configure the ADC module using the ADC control registers, select the analog input channel, and start the ADC conversion. The ADC result can be read from the ADC result register.
  • Yes, the QN9080CHNY can be used in a wireless charging application. It has a built-in wireless charging receiver (WCR) module that supports Qi-compliant wireless charging.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QN9080CHNY Overview

Use the download button to access the QN9080CHNY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QN908, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
