- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QN9080DHNE
- Part Number QN9080DHNE
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN-48
- Released Date Mar 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QN9080DHNE Details
-
Manufacturer Part Number:
QN9080DHNE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, Taiwan
-
ECCN Code:
5A992
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
6
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
-
Time@Peak Reflow Temperature-Max (s):
30
QN9080DHNE Frequently Asked Questions (FAQs)
-
The QN9080DHNE can operate in a temperature range of -40°C to 105°C.
-
To configure the QN9080DHNE for low power consumption, use the low power modes (LP modes) such as Sleep, Deep Sleep, and Hibernate. Also, disable peripherals when not in use, and use the Power Management Unit (PMU) to control power domains.
-
The maximum clock frequency for the QN9080DHNE is 48 MHz.
-
To implement secure boot on the QN9080DHNE, use the Secure Boot feature, which ensures that only authorized firmware can run on the device. This is achieved through a combination of cryptographic techniques, such as digital signatures and encryption.
-
The QN9080DHNE has 1 MB of flash memory available for program storage.
Trust Checks
Community Provided
System Verified
Community Approved
QN9080DHNE Overview

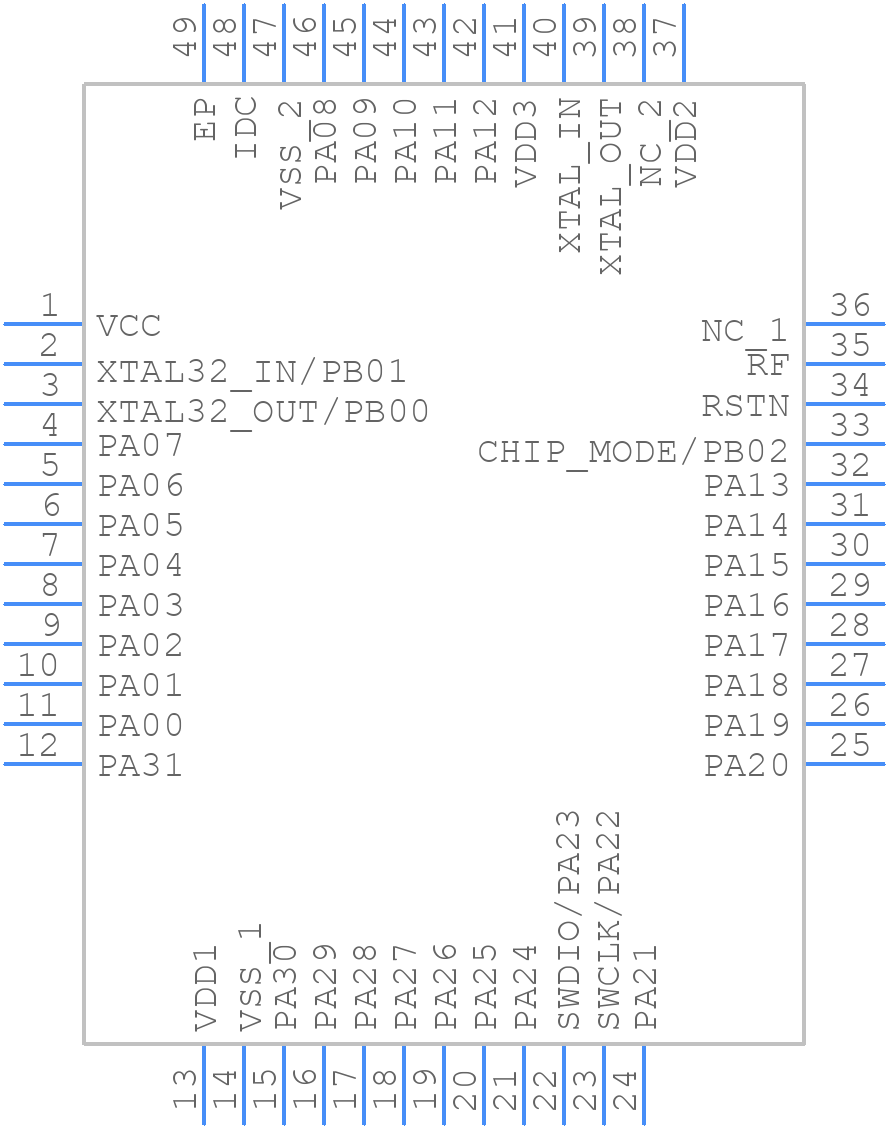

Use the download button to access the QN9080DHNE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QN908,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
