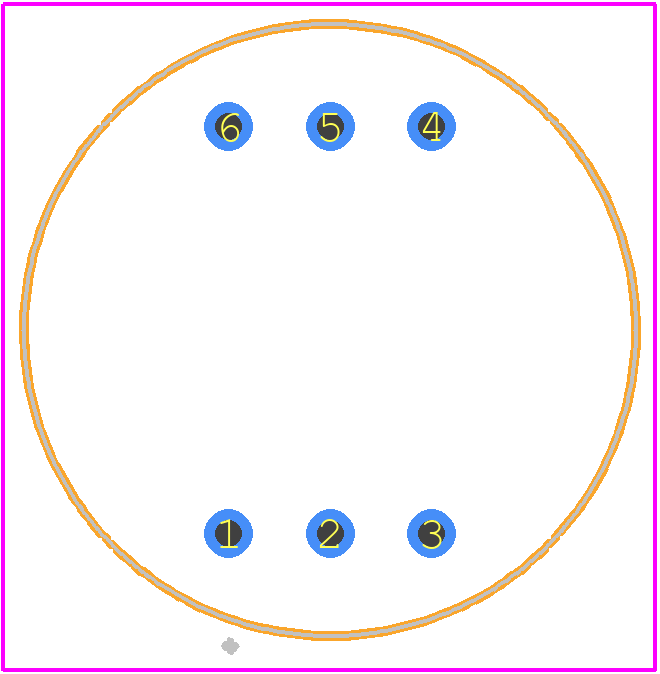

PCB Footprints

3D Models

QP50-6-18U-TO8 Details

First Sensor provides a recommended PCB layout and land pattern in their application note AN5001, which can be found on their website. It's essential to follow these guidelines to ensure proper sensor operation and minimize noise.
The QP50-6-18U-TO8 is a calibrated sensor, and no additional calibration is required. However, if you need to perform a system-level calibration, First Sensor recommends following the calibration procedure outlined in their application note AN5002.
While the datasheet specifies an operating temperature range of -20°C to 85°C, it's essential to note that the sensor's accuracy and performance may degrade at extreme temperatures. For optimal performance, it's recommended to operate the sensor within a temperature range of 0°C to 60°C.
The QP50-6-18U-TO8 is not designed for use in humid or wet environments. It's essential to ensure the sensor is protected from moisture and condensation to prevent damage or degradation. If you need to use the sensor in a humid environment, consider using a protective coating or enclosure.
To prevent damage or incorrect operation, it's recommended to power up the QP50-6-18U-TO8 in the following sequence: VCC, then VOUT. Ensure that the power supply is stable and within the recommended voltage range before applying power to the sensor.

Expert Contribution

System Verified

Community Approved

Use the download button to access the QP50-6-18U-TO8 schematic symbol, PCB footprint, and 3D model.
