The recommended PCB layout and land pattern for QP50-6-TO8 can be found in the First Sensor application note AN5001, which provides detailed guidelines for PCB design and assembly.
The optical window of the QP50-6-TO8 should be handled with care to avoid scratches or contamination. It is recommended to use a soft, dry cloth to clean the window, and avoid touching the window with bare hands.
The maximum operating temperature range for QP50-6-TO8 is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
The QP50-6-TO8 is not hermetically sealed, so it's not recommended to use it in humid environments. If humidity is a concern, consider using a hermetically sealed package or applying a conformal coating to protect the device.
Calibration of the QP50-6-TO8 typically involves adjusting the gain and offset of the sensor output. First Sensor provides a calibration procedure in the datasheet, and also offers calibration services for customers.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QP50-6-TO8 Overview

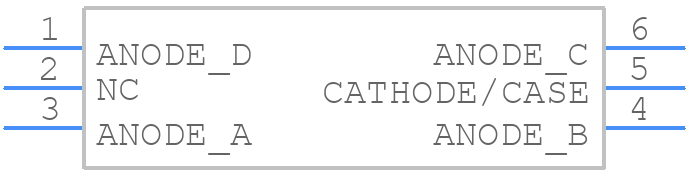

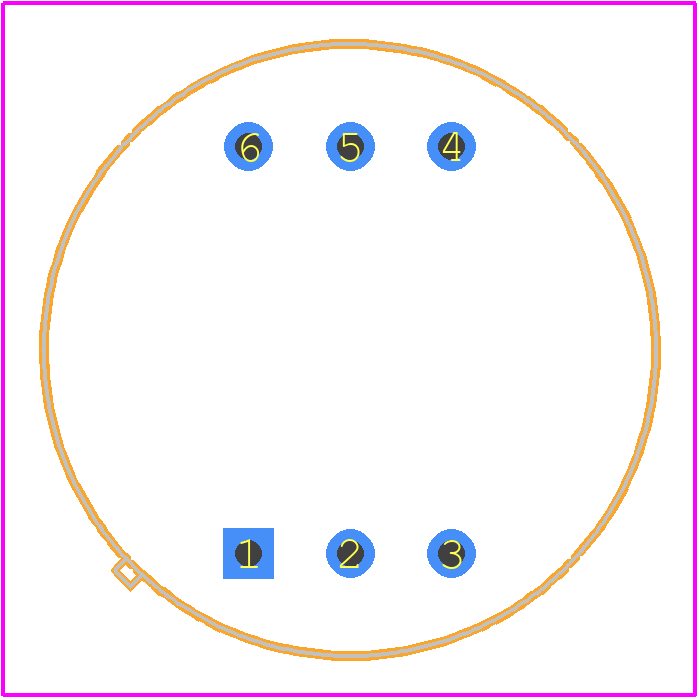

Use the download button to access the QP50-6-TO8 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like QP50-,
or try a keyword search, such as Photo Diodes
