QPA0163LTR7 - Qorvo

Description: 100 - 1300 MHz Cascadable SiGe HBT Amplifier

Download QPA0163LTR7 Model

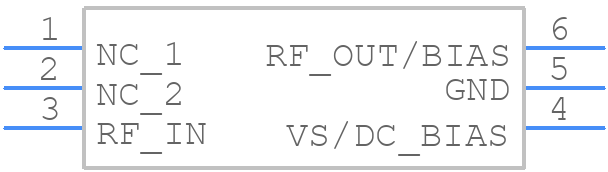

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPA0163LTR7 - Qorvo PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - sot-363
click to zoom
3D Models
QPA0163LTR7 - Qorvo  - 3D model - SOT23 (6-Pin) - sot-363
click to zoom

QPA0163LTR7 Details

  • Manufacturer Part Number:

    QPA0163LTR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOT-363, 6 PIN

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    3

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.9 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP6,.08

  • Power Supplies:

    3/4 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    2.03

QPA0163LTR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal loss. A 50-ohm microstrip line should be used for the RF signal path.
  • The device requires a 5V power supply and a bias current of 350mA. A voltage regulator and a bias-T network can be used to provide the required bias voltage and current. The bias voltage should be applied to the VDD pin and the bias current should be applied to the VBIAS pin.
  • The QPA0163LTR7 can handle up to 2W of input power. However, it's recommended to operate the device at a maximum input power of 1W to ensure reliable operation and to prevent overheating.
  • Use a spectrum analyzer to measure the output power and frequency of the device. Check the input power, bias voltage, and temperature of the device. Verify that the device is properly soldered and that there are no signs of physical damage or contamination.
  • The QPA0163LTR7 operates over a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 60°C for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPA0163LTR7 Overview

Use the download button to access the QPA0163LTR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA01, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
