- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QPA1008
- Part Number QPA1008
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QPA1008-4
- Released Date Feb 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA1008 Details
-
Manufacturer Part Number:
QPA1008
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-28
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
7.03
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
28 dB
-
Input Power-Max (CW):
29 dBm
QPA1008 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The QPA1008 should be placed near the edge of the board to minimize the length of the RF traces. A 50-ohm microstrip line should be used to connect the QPA1008 to the antenna.
-
To optimize the QPA1008 for low power consumption, ensure that the device is operated at the lowest possible supply voltage (VCC) while maintaining the required output power. Additionally, disable the device when not in use by pulling the EN pin low.
-
The QPA1008 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at temperatures above 70°C. It is recommended to operate the device within the -20°C to +60°C range for optimal performance.
-
To ensure the QPA1008 meets regulatory requirements for EMI and EMC, follow proper PCB layout and design guidelines, use a shielded enclosure, and implement proper filtering and shielding techniques. Additionally, perform thorough testing and certification to ensure compliance with relevant regulations.
-
The recommended input impedance for the QPA1008 is 50 ohms, and the recommended output impedance is also 50 ohms. Impedance matching networks may be required to achieve optimal performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
QPA1008 Overview

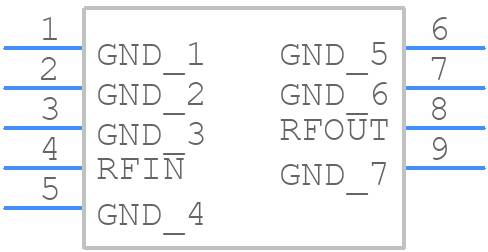

Use the download button to access the QPA1008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA10,
or try a keyword search, such as RF/Microwave Amplifiers
