QPA2611 - Qorvo

Description: 5 Watt X-Band GaN Power Amplifier

Download QPA2611 Model

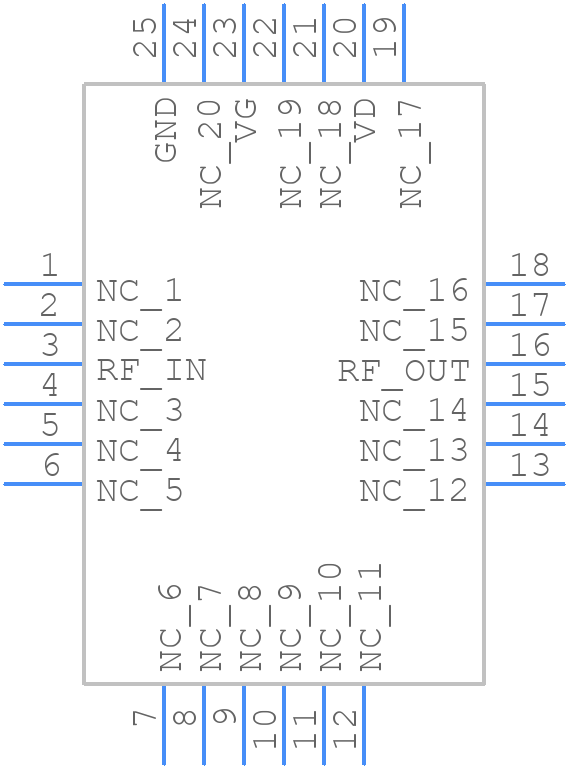

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPA2611 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QPA2611
click to zoom
3D Models
QPA2611 - Qorvo  - 3D model - Quad Flat No-Lead - QPA2611
click to zoom

QPA2611 Details

  • Manufacturer Part Number:

    QPA2611

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    3A001.B.2.B.2

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-12-09

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.94

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    35.5 dB

  • Input Power-Max (CW):

    21 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    8000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    3

QPA2611 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
  • Use the Qorvo simulation models and design tools to optimize the component values and layout for the desired frequency band. Consider the device's frequency response, gain, and impedance matching.
  • The QPA2611 can handle up to 33 dBm of input power. However, the maximum power handling may vary depending on the specific application and operating conditions. Consult the datasheet and application notes for more information.
  • Follow the recommended biasing scheme in the datasheet, using a voltage regulator and a resistor network to set the bias voltage and current. Ensure the bias voltage is within the recommended range (typically 3.3-5V) and the current is limited to 100 mA.
  • The QPA2611 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid overheating the device. Consult the datasheet for thermal resistance and power dissipation information.
