- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QPA2612
- Part Number QPA2612
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPA2612
- Released Date Apr 25, 2020
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA2612 Details
-
Manufacturer Part Number:
QPA2612
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-24
-
ECCN Code:
3A001.B.2.B.2
-
Date Of Intro:
2019-12-16
-
Manufacturer:
Qorvo
-
YTEOL:
7.94
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
34.2 dB
QPA2612 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
-
Use the Qorvo's Qorvo's RF Design Kit or a similar tool to optimize the component values for the desired frequency band. The kit provides a set of recommended component values for different frequency bands.
-
The QPA2612 can handle up to 33 dBm of input power. However, the maximum power handling capability may vary depending on the specific application and operating conditions.
-
Follow the recommended biasing scheme in the datasheet. Ensure the voltage supply is stable and regulated. Use a voltage regulator or a low-dropout regulator to maintain a stable voltage supply.
-
The recommended operating temperature range for the QPA2612 is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA2612 Overview

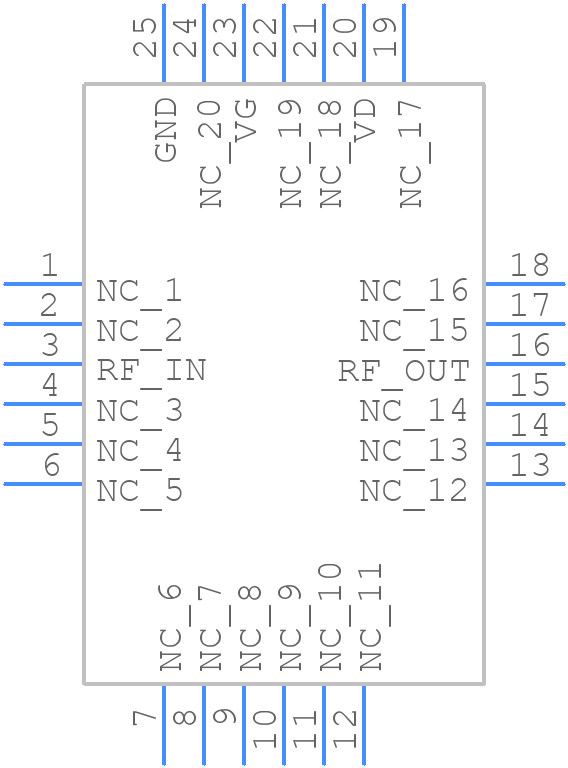

Use the download button to access the QPA2612 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA26,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
