Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The optimal biasing of QPA2933 depends on the specific application requirements. Qorvo provides a biasing calculator tool on their website, which can help engineers determine the optimal biasing conditions for their application. Additionally, the application note AN-2171 provides guidelines for biasing and tuning the device.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Qorvo recommends derating the device's power dissipation above +70°C to ensure reliable operation. Engineers should consult the datasheet and application notes for more information on thermal management and derating.
Qorvo provides a set of recommended matching networks and component values in their application note AN-2171. Engineers can use these values as a starting point and then optimize the matching network using simulation tools or empirical methods to achieve optimal performance.
Qorvo recommends following standard ESD handling procedures when handling QPA2933 devices, including using ESD-safe workstations, wrist straps, and packaging materials. The device has built-in ESD protection, but it is still important to follow proper handling procedures to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA2933 Overview

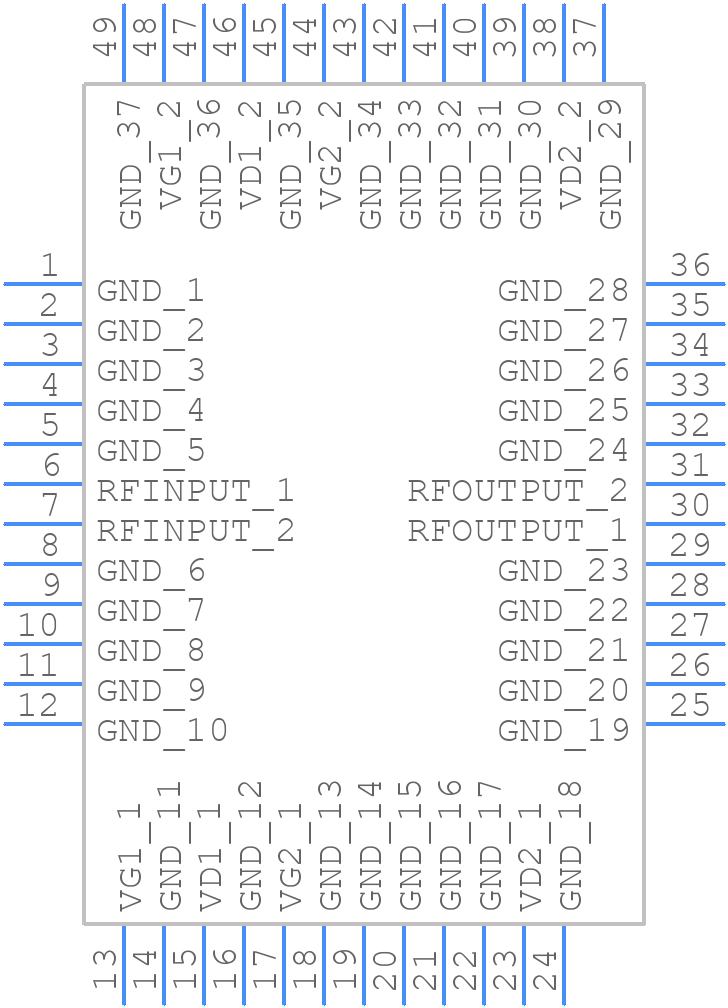

Use the download button to access the QPA2933 schematic symbol, PCB footprint, and 3D model.
