QPA4563ATR7 - Qorvo

Description: DC - 3500 MHz Cascadable SiGe HBT MMIC Amplifier

Download QPA4563ATR7 Model
Schematic
symbols

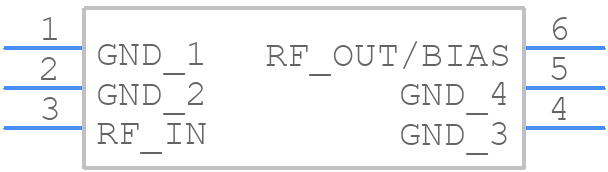

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPA4563ATR7 - Qorvo PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - sot-363
click to zoom
3D Models
QPA4563ATR7 - Qorvo  - 3D model - SOT23 (6-Pin) - sot-363
click to zoom

QPA4563ATR7 Details

  • Manufacturer Part Number:

    QPA4563ATR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-363, 6 PIN

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16 dB

  • Input Power-Max (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    TSSOP6,.08

  • Power Supplies:

    3.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    50 mA

  • Surface Mount:

    YES

  • Technology:

    HBT

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12
