- Part Number QPA9120TR7
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPA9120TR7-
- Released Date Jan 30, 2023
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA9120TR7 Details
-
Manufacturer Part Number:
QPA9120TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6.83
-
RF/Microwave Device Type:
LOW NOISE AMPLIFIER
QPA9120TR7 Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and simulation models to help with this process.
-
Operate the QPA9120TR7 within the recommended temperature range of -40°C to 85°C, and ensure that the device is not exposed to moisture or mechanical stress. Follow Qorvo's recommended assembly and handling procedures to prevent damage.
-
Use a systematic approach to troubleshoot issues, starting with a review of the PCB layout and component values. Check for soldering defects, component damage, or incorrect component values. Use measurement tools such as a spectrum analyzer or oscilloscope to diagnose issues.
-
Yes, the QPA9120TR7 is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap, mat, or workstation, and follow Qorvo's recommended handling procedures to prevent damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA9120TR7 Overview

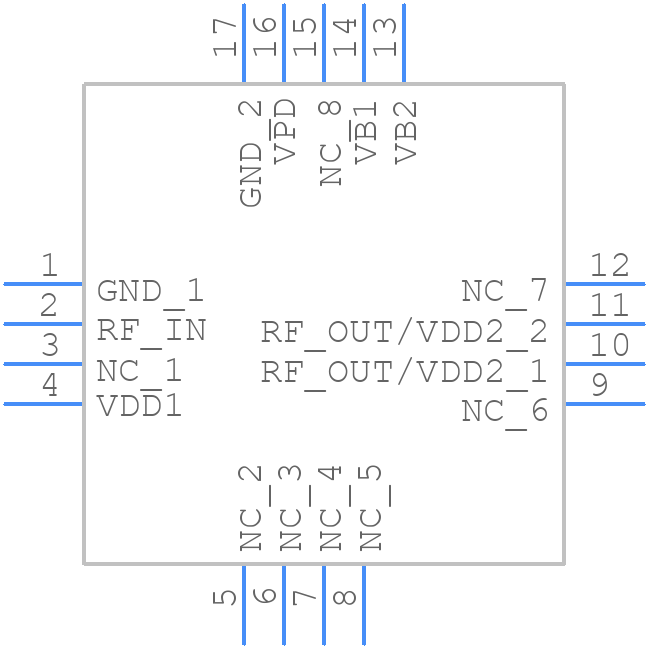

Use the download button to access the QPA9120TR7 schematic symbol, PCB footprint, and 3D model.
