- Part Number QPA9126TR7
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 8 Pad 2 x 2 mm DFN
- Released Date May 29, 2023
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA9126TR7 Details
-
Manufacturer Part Number:
QPA9126TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
Factory Lead Time:
16 Weeks
-
Date Of Intro:
2019-06-28
-
Manufacturer:
Qorvo
-
YTEOL:
7.01
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
16 dB
QPA9126TR7 Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a large copper area on the PCB to improve heat dissipation.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and simulation models to help with this process.
-
Use a reflow soldering process with a peak temperature of 260°C. Ensure the device is handled by the edges to prevent damage to the electrical contacts. Follow Qorvo's recommended assembly guidelines for optimal results.
-
Use a systematic approach to troubleshoot issues, starting with a review of the PCB layout, component values, and soldering quality. Use measurement tools such as a spectrum analyzer and a vector network analyzer to identify the root cause of the issue.
-
Qorvo performs a range of reliability tests, including temperature cycling, humidity testing, and electrical overstress testing. The device is also qualified according to the Automotive Electronics Council (AEC) Q100 standard.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA9126TR7 Overview

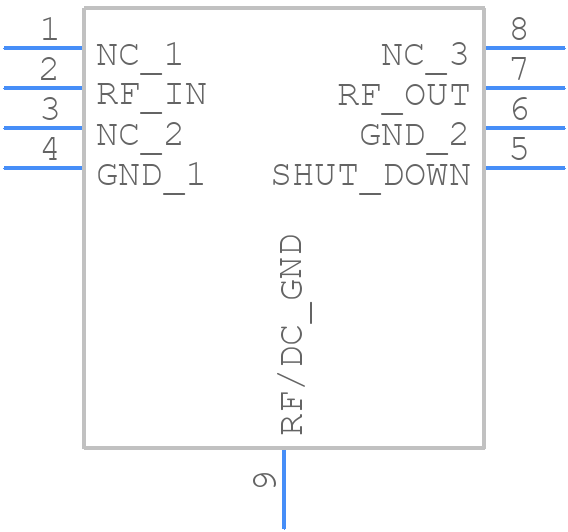

Use the download button to access the QPA9126TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA91,
or try a keyword search, such as RF/Microwave Amplifiers
