QPA9226TR13 - Qorvo

Description: 2500 - 2700 MHz, 0.25 Watt High Linearity Small Cell Power Amplifier

Download QPA9226TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

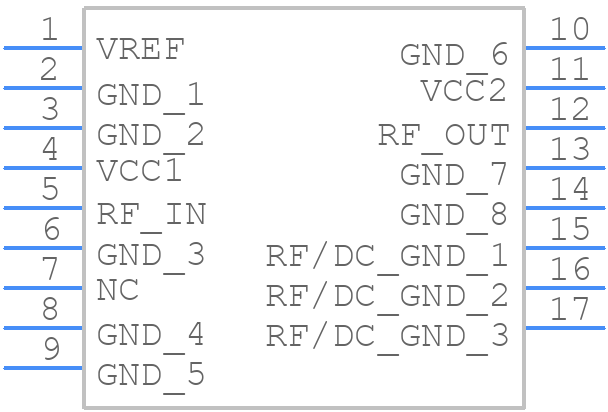

QPA9226TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA9226TR13 - Qorvo PCB footprint - Other - Other - QPA9226
click to zoom
3D Models
QPA9226TR13 - Qorvo - 3D model - Other - QPA9226
click to zoom

QPA9226TR13 Details

  • Manufacturer Part Number:

    QPA9226TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-09-29

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    31 dB

  • Input Power-Max (CW):

    9 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC14,.28,42

  • Power Supplies:

    4.5 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Supply Current-Max:

    450 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    2.61

QPA9226TR13 Frequently Asked Questions (FAQs)

  • Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
  • Qorvo provides a reference design and simulation models for the QPA9226TR13. Engineers can use these resources to optimize the input and output matching networks for their specific application using simulation software such as ADS or AWR.
  • Qorvo recommends a sequential biasing approach, where the drain voltage is applied first, followed by the gate voltage. The recommended biasing conditions are Vd = 12V, Vg = 2.5V, and Idq = 100mA.
  • Qorvo recommends using a stability network consisting of a series RC circuit at the input and output of the amplifier. Additionally, a low-pass filter can be used to attenuate high-frequency noise and prevent oscillations.
  • The maximum safe operating area (SOA) for the QPA9226TR13 is defined by the maximum voltage and current ratings. The amplifier should not be operated beyond Vds = 24V, Id = 1.5A, and Pd = 10W to prevent damage.
