- Part Number QPA9442TR13
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QPA9442TR13-4
- Released Date Oct 28, 2023
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPA9442TR13 Details
-
Manufacturer Part Number:
QPA9442TR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B
-
HTS Code:
8517.62.00.90
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
QPA9442TR13 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The optimal biasing of QPA9442TR13 depends on the specific application and operating conditions. Qorvo recommends using their Power Amplifier Design Tool (PADT) software to simulate and optimize the biasing for maximum power efficiency. The tool takes into account factors such as output power, frequency, and voltage supply.
-
While the datasheet specifies an operating temperature range of -40°C to +85°C, Qorvo recommends derating the device's power output and voltage supply as the temperature increases to ensure reliable operation. Consult Qorvo's application note AN-2171 for more information on thermal derating.
-
Qorvo provides a troubleshooting guide in their application note AN-2171, which covers common issues and their possible causes, as well as recommended debugging techniques and measurement procedures.
-
Yes, QPA9442TR13 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD precautions, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPA9442TR13 Overview

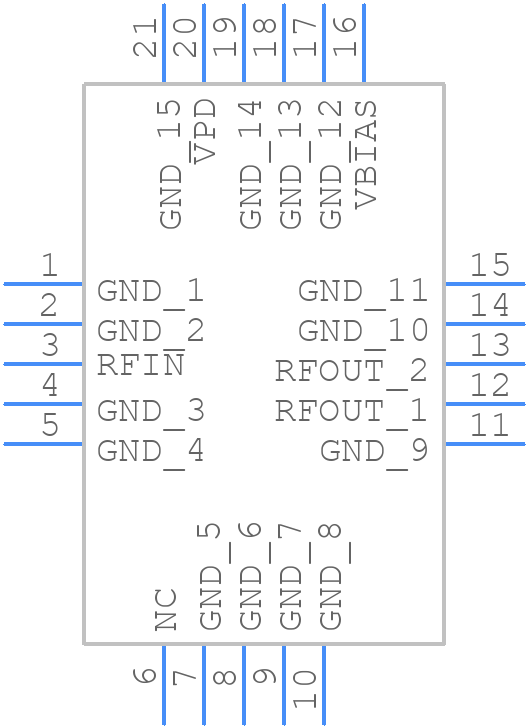

Use the download button to access the QPA9442TR13 schematic symbol, PCB footprint, and 3D model.
