QPA9901TR13 - Qorvo

Description: 2110 - 2200 MHz, 4 Watt High Efficiency Amplifier, 1.8V logic compatible PA ON/OFF control, 16 Pad 5 x 5 mm Package

Download QPA9901TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

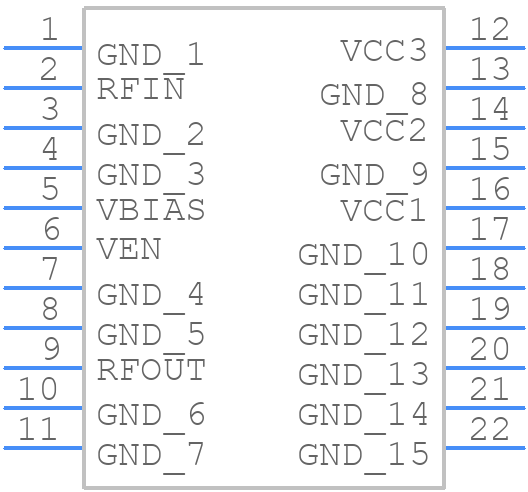

QPA9901TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPA9901TR13 - Qorvo PCB footprint - Other - Other - 16 Pad 5 x 5 mm _2024-3
click to zoom
3D Models
QPA9901TR13 - Qorvo - 3D model - Other - 16 Pad 5 x 5 mm _2024-3
click to zoom

QPA9901TR13 Details

  • Manufacturer Part Number:

    QPA9901TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-12-04

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.37

  • Additional Feature:

    I/P POWER-MAX (PULSE)=10DBM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    34 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    2110 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Surface Mount:

    YES

QPA9901TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic effects and ensure optimal performance.
  • The QPA9901TR13 requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage regulator to provide a stable 5V supply, and a bias resistor network to set the desired bias current. Refer to the application note AN-2171 for detailed biasing guidelines.
  • The QPA9901TR13 is rated for operation from -40°C to +85°C, but Qorvo recommends derating the device for extended temperature ranges. Consult the datasheet and application notes for specific temperature derating guidelines.
  • Qorvo provides troubleshooting guidelines in their application note AN-2171, which covers common issues such as oscillation, instability, and noise. Additionally, Qorvo's technical support team can provide assistance with troubleshooting and debugging.
  • Qorvo recommends using ESD protection devices such as TVS diodes or ESD arrays to protect the QPA9901TR13 from electrostatic discharge. The specific ESD protection scheme will depend on the application and PCB layout.
