Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB stack-up to ensure optimal performance and thermal dissipation.
Qorvo offers a free online tool called Qorvo's GaN Device Model and S-Parameter Tool, which allows users to simulate and optimize the biasing and matching networks for their specific application. Additionally, Qorvo's application engineers can provide custom support and guidance.
While the datasheet specifies a maximum junction temperature of 150°C, the maximum operating temperature range for the QPA9908TR13 is typically limited by the package and PCB design. Qorvo recommends a maximum operating temperature of 125°C for most applications, but this can vary depending on the specific use case and design.
Qorvo recommends using a soft-start circuit to slowly ramp up the voltage and current during startup, ensuring the device is properly biased and turned on. This can be achieved using a simple RC circuit or a dedicated soft-start IC.
The QPA9908TR13 is a sensitive GaN device that requires proper ESD protection and handling. Qorvo recommends following standard ESD handling procedures, such as using wrist straps, anti-static bags, and ESD-safe workstations, to prevent damage during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPA9908TR13 Overview

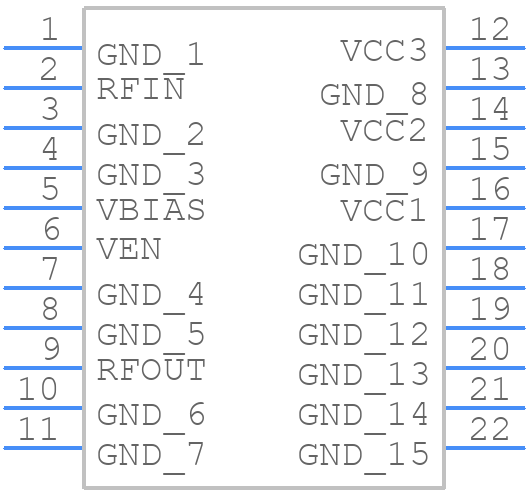

Use the download button to access the QPA9908TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPA99,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
