A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal loss. A 50-ohm microstrip line should be used for the RF signal path.
The device requires a 5V supply voltage and a bias current of 13mA. A voltage regulator and a bias resistor network can be used to ensure stable biasing. The bias voltage should be set to 2.5V for optimal performance.
The QPC1217QTR13-5K can handle up to 33dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
Use a spectrum analyzer to check the output signal for distortion or spurious signals. Verify the bias voltage and current are within the recommended range. Check the PCB layout for any signal integrity issues or electromagnetic interference (EMI).
Yes, the QPC1217QTR13-5K is designed for high-reliability applications and is qualified to various industry standards, including MIL-STD-883 and AEC-Q100. However, it is essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC1217QTR13-5K Overview

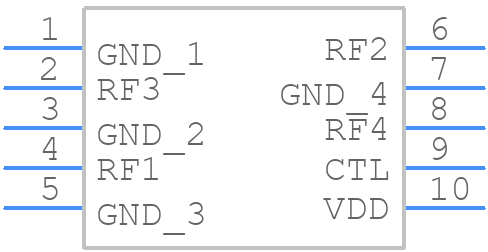

Use the download button to access the QPC1217QTR13-5K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC12,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
