Qorvo provides a recommended PCB layout and land pattern in their application note AN-1151, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing circuit should be designed to provide a stable voltage supply to the device. A recommended approach is to use a voltage regulator with a low dropout voltage and a decoupling capacitor close to the device. Additionally, ensure the biasing circuit is designed to minimize noise and ripple.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to operate the device within a temperature range of -20°C to 70°C for optimal performance and reliability.
The QPC1220QTR13 is an ESD-sensitive device. To handle it safely, use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or exposed pads, and handle the device by the body or pins only.
Store the QPC1220QTR13 in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to mechanical stress, vibration, or shock. When handling the device, avoid bending or flexing the leads, and ensure the device is properly seated in its packaging or on the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC1220QTR13 Overview

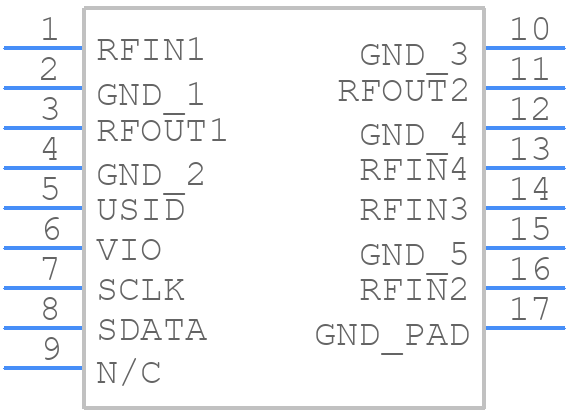

Use the download button to access the QPC1220QTR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC12,
or try a keyword search, such as Telecom Switching Circuits
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
