QPC3025SR - Qorvo

Description: RF Switch ICs 30-4200MHz SPDT 30W pulsed 20W CW

Download QPC3025SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

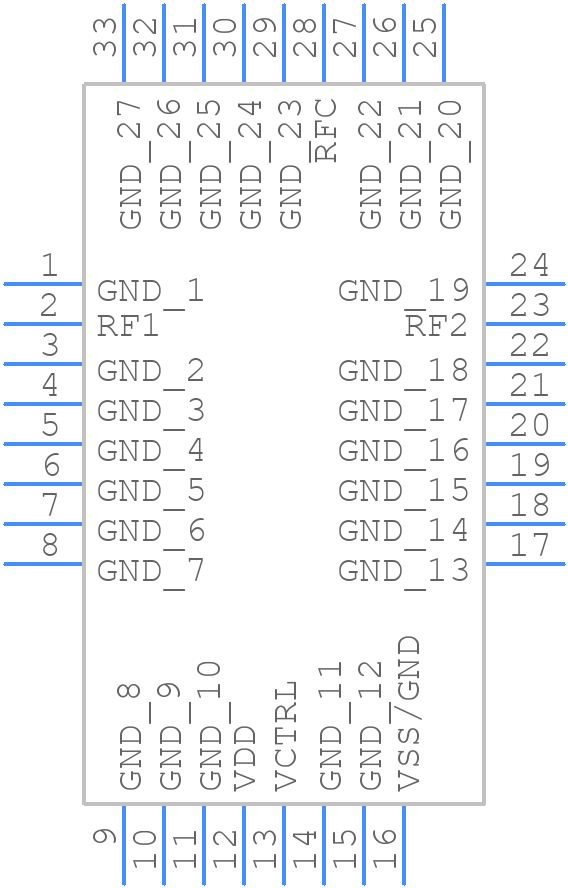

QPC3025SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPC3025SR - Qorvo PCB footprint - Other - Other - QPC3025SR-3
click to zoom
3D Models
QPC3025SR - Qorvo - 3D model - Other - QPC3025SR-3
click to zoom

QPC3025SR Details

  • Manufacturer Part Number:

    QPC3025SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Date Of Intro:

    2018-08-10

  • Manufacturer:

    Qorvo

QPC3025SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The QPC3025SR requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free, and that the device is properly decoupled with 100nF and 10uF capacitors.
  • The QPC3025SR can handle up to 33dBm of input power. Exceeding this limit may cause damage to the device.
  • Use a spectrum analyzer to check the input and output signals. Verify the bias voltage and decoupling. Check for any signs of overheating or physical damage to the device.
  • Yes, the QPC3025SR is designed for high-reliability applications and is qualified to various industry standards, including AEC-Q100 and MIL-STD-883.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC3025SR Overview

Use the download button to access the QPC3025SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC30, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
