QPC3025TR13 - Qorvo

Description: 0.03 - 4.2 GHz High Power, Reflective SPDT Switch

Download QPC3025TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

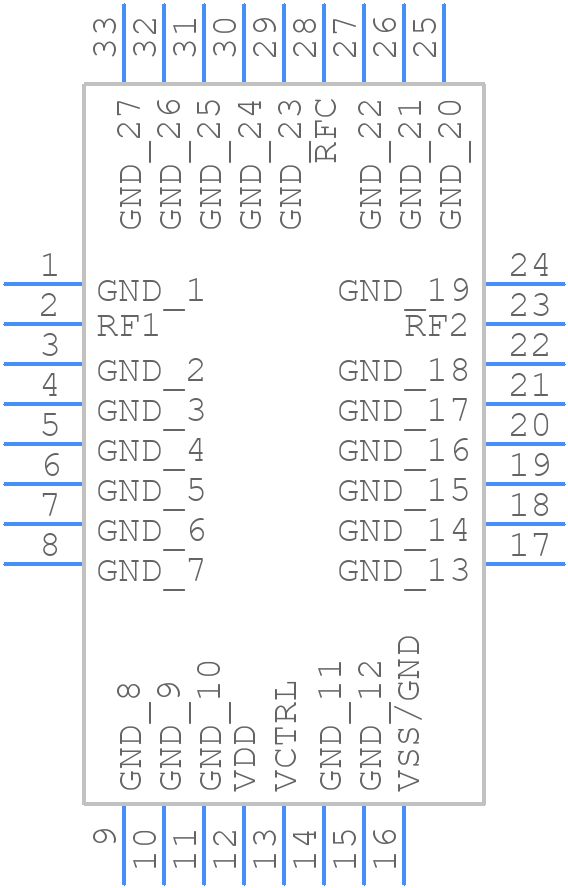

QPC3025TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPC3025TR13 - Qorvo PCB footprint - Other - Other - 32 Pin 5 mm x 5 mm leadless SMT Package_2024
click to zoom
3D Models
QPC3025TR13 - Qorvo - 3D model - Other - 32 Pin 5 mm x 5 mm leadless SMT Package_2024
click to zoom

QPC3025TR13 Details

  • Manufacturer Part Number:

    QPC3025TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-08-10

  • Manufacturer:

    Qorvo

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

QPC3025TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The QPC3025TR13 has a thermal pad on the bottom of the package, which needs to be connected to a thermal ground plane on the PCB. A thermal via array or a copper pour can be used to dissipate heat. Additionally, a heat sink or a thermal interface material can be used to further improve thermal management.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling above 70°C to ensure reliability and prevent thermal runaway.
  • Qorvo provides a set of recommended impedance matching circuits in their application note AN-2171. These circuits can be used as a starting point for impedance matching. Additionally, simulation tools like ADS or AWR can be used to optimize the matching circuit for specific system requirements.
  • Qorvo recommends using a reflow soldering process with a peak temperature of 260°C and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the risk of overheating the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC3025TR13 Overview

Use the download button to access the QPC3025TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC30, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
