Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The QPC4270TR7 requires a bias voltage of 3.3V to 5V, and a bias current of 10mA to 20mA. Ensure that the bias voltage and current are within the recommended range, and that the bias circuit is properly decoupled to prevent noise and oscillations.
The QPC4270TR7 is rated for operation from -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal runaway.
Qorvo provides a troubleshooting guide in their application note AN-2172, which includes steps to identify and resolve common issues, such as checking the bias circuit, ensuring proper PCB layout, and verifying the input and output matching networks.
The QPC4270TR7 is a sensitive electronic component and requires proper storage and handling to prevent damage. Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die, and use anti-static precautions to prevent electrostatic discharge (ESD).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC4270TR7 Overview

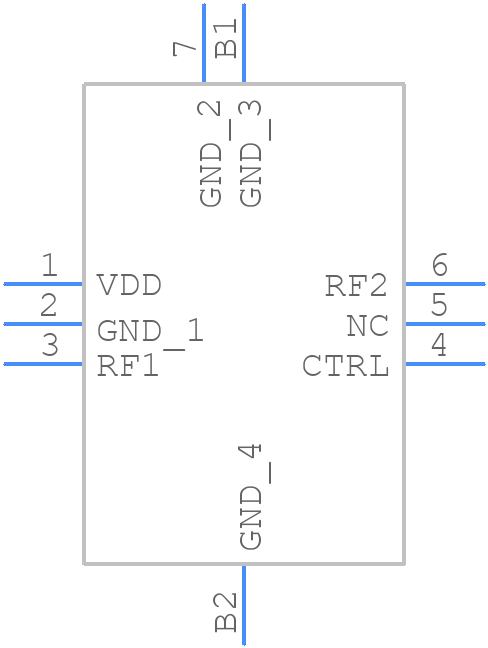

Use the download button to access the QPC4270TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC42,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
