QPC6034TR13 - Qorvo

Description: RF Switch ICs .05-6GHz SP3T IL .93dB

Download QPC6034TR13 Model

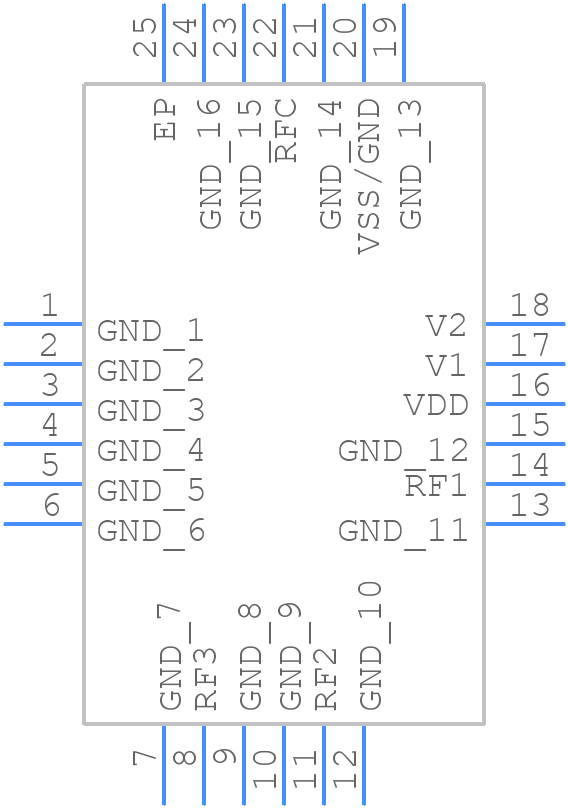

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPC6034TR13 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Package: QFN, 24-pin, 4.0 mm x 4.0 mm
click to zoom
3D Models
QPC6034TR13 - Qorvo  - 3D model - Quad Flat No-Lead - Package: QFN, 24-pin, 4.0 mm x 4.0 mm
click to zoom

QPC6034TR13 Details

  • Manufacturer Part Number:

    QPC6034TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-11-16

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    37.5 dBm

  • Insertion Loss-Max:

    1 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.07

QPC6034TR13 Frequently Asked Questions (FAQs)

  • Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Qorvo provides a reference design and application notes to help with this process.
  • Use a reflow soldering process with a peak temperature of 260°C. Ensure the device is handled by the package, not the leads, to prevent damage. Follow Qorvo's recommended assembly and soldering guidelines.
  • Use a systematic approach to troubleshoot, checking for proper biasing, input/output matching, and PCB layout. Consult Qorvo's application notes and technical support resources for guidance.
  • Qorvo performs a range of reliability tests, including temperature cycling, humidity, and vibration testing, as well as qualification tests such as HAST and HTOL. Consult the Qorvo website for detailed information on the qualification process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC6034TR13 Overview

Use the download button to access the QPC6034TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC60, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
