- Part Number QPC6054TR13
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPC6044
- Released Date Aug 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC6054TR13 Details
-
Manufacturer Part Number:
QPC6054TR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-24
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
16 Weeks
-
Date Of Intro:
2016-01-15
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
QPC6054TR13 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using thermal pads and a heat sink if necessary.
-
Use a combination of simulation tools and empirical methods to optimize the matching network. Consider using a pi-network or a T-network topology, and adjust the component values based on the device's S-parameters.
-
The maximum safe operating temperature is 150°C. However, it's recommended to operate the device at a temperature below 125°C for optimal reliability and performance.
-
Yes, the QPC6054TR13 can be used in a push-pull configuration. However, ensure that the devices are properly matched and biased to avoid uneven current distribution and thermal runaway.
-
A voltage-controlled biasing scheme is recommended, with a voltage regulator and a current sense resistor to ensure stable operation and prevent thermal runaway.
Trust Checks
Community Provided
System Verified
Community Approved
QPC6054TR13 Overview

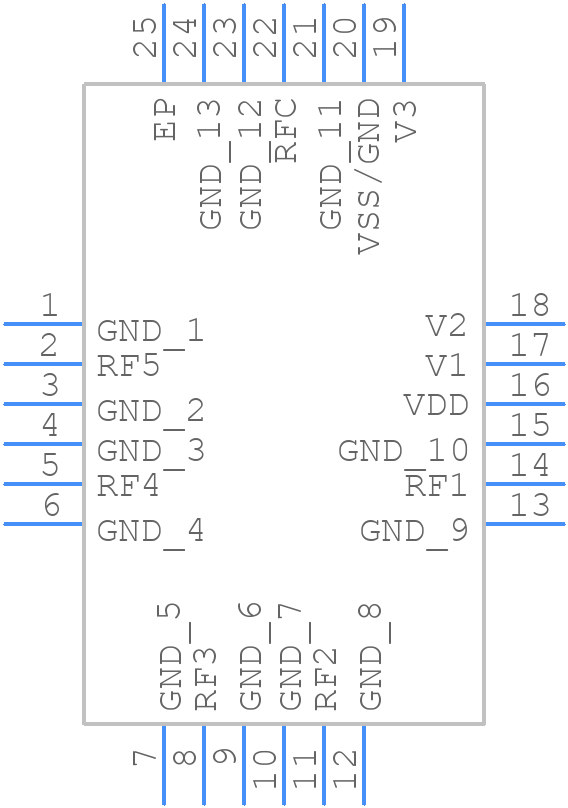

Use the download button to access the QPC6054TR13 schematic symbol, PCB footprint, and 3D model.
