QPC6064SR - Qorvo

Description: RF Switch ICs .05-6GHz SP6T IL 1.1dB

Download QPC6064SR Model

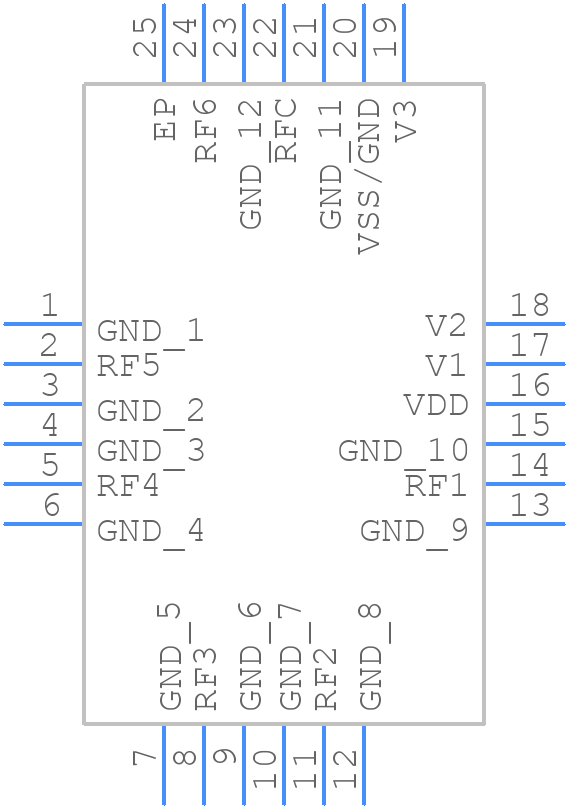

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPC6064SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QPC6044
click to zoom
3D Models
QPC6064SR - Qorvo  - 3D model - Quad Flat No-Lead - QPC6044
click to zoom

QPC6064SR Details

  • Manufacturer Part Number:

    QPC6064SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • 1dB Compression Point:

    36 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    35 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP6T

  • Surface Mount:

    YES

  • VSWR-Max:

    1.07

QPC6064SR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The QPC6064SR requires a bias voltage of 3.3V to 5V. Ensure the bias voltage is stable and noise-free, and that the device is properly decoupled with 100nF and 10uF capacitors.
  • The QPC6064SR can handle up to 38 dBm of input power. However, it's recommended to operate the device at a maximum of 36 dBm to ensure reliable performance and prevent damage.
  • Use a spectrum analyzer to check the input and output signals. Verify the bias voltage and current. Check for proper PCB layout and decoupling. If issues persist, consult the Qorvo application note and contact Qorvo support.
  • Yes, the QPC6064SR can be used in a push-pull configuration. However, ensure that the devices are properly matched and biased, and that the layout is symmetrical to minimize imbalance and distortion.
