- Part Number QPC6324SR
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN-20
- Released Date Nov 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC6324SR Details
-
Manufacturer Part Number:
QPC6324SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Qorvo
-
YTEOL:
6
-
1dB Compression Point:
37 dBm
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
31 dBm
QPC6324SR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
-
The biasing of the QPC6324SR should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias voltage of around 3.3V and a current of around 100mA is recommended. The bias points should be adjusted based on the specific application and operating conditions.
-
The maximum operating frequency of the QPC6324SR is 6 GHz. However, the device can be used up to 8 GHz with some degradation in performance.
-
The noise figure of the QPC6324SR can be reduced by optimizing the biasing, using a high-quality input match, and minimizing the parasitic inductance and capacitance. Additionally, using a low-noise amplifier (LNA) in front of the QPC6324SR can also help reduce the noise figure.
-
The maximum input power that the QPC6324SR can handle is +10 dBm. Exceeding this power level can cause damage to the device.
Trust Checks
Community Provided
System Verified
Community Approved
QPC6324SR Overview

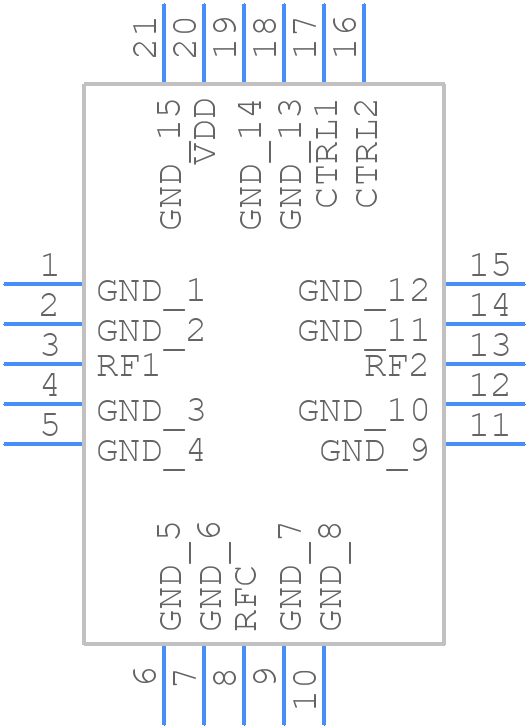

Use the download button to access the QPC6324SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC63,
or try a keyword search, such as RF/Microwave Switches
