QPC6324TR13 - Qorvo

Description: • 5 MHz to 6000 MHz Operation • Non-Reflective (RFX ports) • Terminated All-Off State mode • No Blocking Caps needed unless voltage is on RF Line • High Isolation: RFC-RFX: 63 dB at 2 GHz RFX-RFX: 63 dB at 2 GHz • +1.8 V Logic Compatible

Download QPC6324TR13 Model

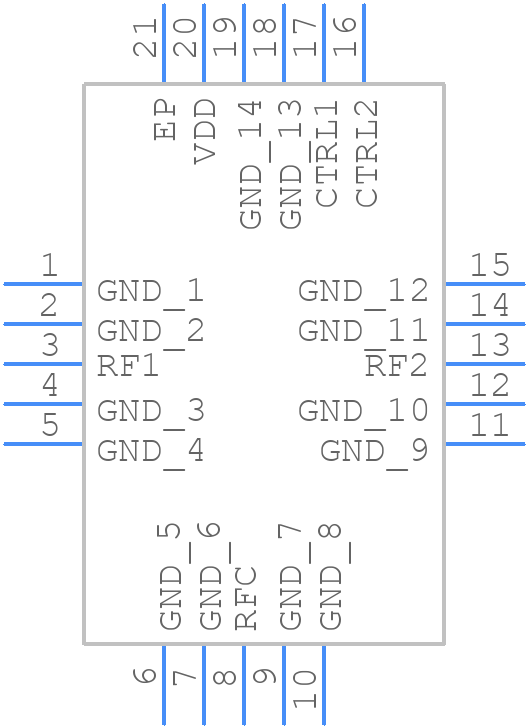

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPC6324TR13 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4 mm .
click to zoom
3D Models
QPC6324TR13 - Qorvo  - 3D model - Quad Flat No-Lead - QFN 4x4 mm .
click to zoom

QPC6324TR13 Details

  • Manufacturer Part Number:

    QPC6324TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31 dBm

  • Insertion Loss-Max:

    1.35 dB

  • Isolation-Min:

    44 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • On Time-Nom:

    0.18 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.17

QPC6324TR13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a Smith chart or a circuit simulator to design and optimize the input and output matching networks for maximum power transfer and minimum reflection coefficient.
  • A voltage-controlled current source or a resistive voltage divider can be used to bias the device. Ensure the bias voltage is within the recommended range (2.5V to 5.5V) and the current is limited to 300mA.
  • Monitor the device's junction temperature, voltage, and current to ensure they are within the recommended limits. Use a thermal sensor and a voltage/current monitor to prevent overheating and overvoltage/overcurrent conditions.
  • Use a TVS (transient voltage suppressor) diode or a zener diode with a voltage rating higher than the maximum operating voltage to protect the device from electrostatic discharge.
