- Part Number QPC8013QTR13
- Manufacturer Qorvo
- Pin Count 13
- Part Category Switch
- Package Category Other
- Footprint Name Other - QPC8013QSB-2
- Released Date Jan 3, 2025
- Last Modified Date Feb 28, 2025 2:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC8013QTR13 Details
-
Manufacturer Part Number:
QPC8013QTR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6.9
-
Additional Feature:
HIGH ISOLATION, I/P POWER-MAX(PEAK)=2.51W
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
QPC8013QTR13 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-1234, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo provides a troubleshooting guide in their application note AN-1235, which includes steps to identify and resolve common issues, such as checking for proper biasing, ensuring correct component values, and verifying signal integrity.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's performance at temperatures above 70°C to ensure reliable operation and prevent thermal damage.
-
Yes, but impedance matching may be required to ensure optimal performance. Qorvo provides guidance on impedance matching in their application note AN-1236, which includes examples of matching networks for common impedance values.
-
Qorvo recommends storing the QPC8013QTR13 in a dry, static-free environment, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps and mats to prevent electrostatic discharge (ESD) damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC8013QTR13 Overview

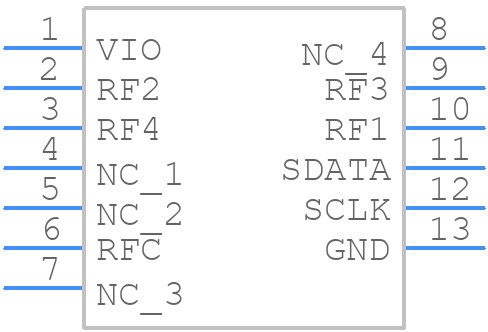

Use the download button to access the QPC8013QTR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC80,
or try a keyword search, such as RF/Microwave Switches
