- Part Number QPC8014QTR13
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QPC8014QTR13-3
- Released Date Aug 3, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC8014QTR13 Details
-
Manufacturer Part Number:
QPC8014QTR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6.9
-
Additional Feature:
HIGH ISOLATION, I/P POWER-MAX(PEAK)=1.58W
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
QPC8014QTR13 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
The QPC8014QTR13 requires a specific biasing scheme to achieve optimal linearity and gain. Qorvo recommends using a voltage-controlled current source (VCCS) to bias the device, with a typical bias voltage of 3.3V and a bias current of 100mA.
-
The QPC8014QTR13 is rated for operation from -40°C to +105°C, but Qorvo recommends derating the device for reliable operation above 85°C. Consult the datasheet for specific derating guidelines.
-
Qorvo provides troubleshooting guidelines in their application note AN-2172, which covers common issues and their solutions, including oscillation, instability, and noise-related problems.
-
Qorvo recommends using ESD protection devices with a human body model (HBM) rating of at least 2kV and a machine model (MM) rating of at least 200V to protect the QPC8014QTR13 from electrostatic discharge.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC8014QTR13 Overview

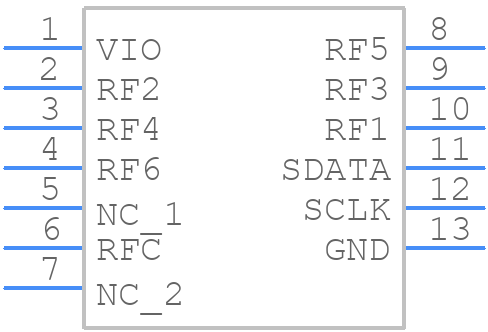

Use the download button to access the QPC8014QTR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC80,
or try a keyword search, such as RF/Microwave Switches
