Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
To minimize high frequency noise, it is recommended to use a low-pass filter or a ferrite bead in series with the power supply lines, and to keep the device away from sensitive analog circuits. Additionally, a good grounding scheme and proper shielding can help reduce noise radiation.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling capability at higher temperatures to ensure reliable operation. Consult Qorvo's application notes for more information on thermal derating.
Yes, QPD0005SR can be used in switching power supply applications, but it requires careful design consideration to ensure the device can handle the high voltage and current transients. Qorvo provides guidance on using QPD0005SR in switching power supplies in their application note AN-2172.
Qorvo provides a troubleshooting guide in their application note AN-2173, which covers common issues such as overheating, noise, and oscillation, and provides guidance on how to identify and resolve these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPD0005SR Overview

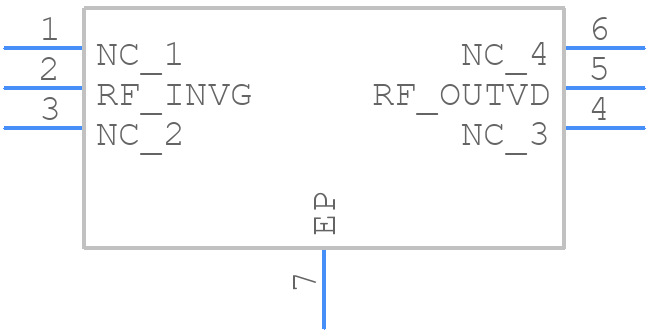

Use the download button to access the QPD0005SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD00,
or try a keyword search, such as RF Power Field-Effect Transistors
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
