QPD0005TR13 - Qorvo

Description: Operating Frequency Range: 2.5 – 5.0 GHz • Operating Drain Voltage: +48 V • Maximum Output Power (PSAT): 8.7 W (1) • Maximum Drain Efficiency: 72.9% (1) • Efficiency-Tuned P3dB Gain: 18.8 dB (1) • 4.5 x 4.0 mm DFN Package

Download QPD0005TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

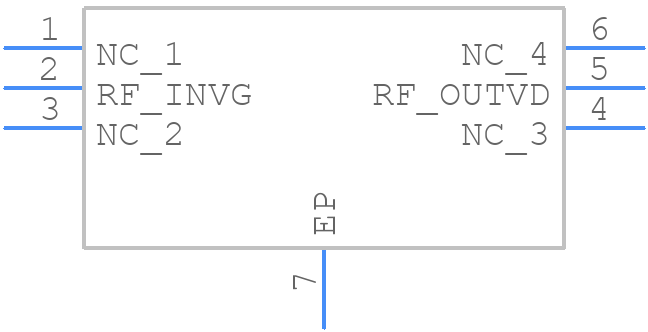

QPD0005TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD0005TR13 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Pin 2 x 2 mm DFN Package
click to zoom
3D Models
QPD0005TR13 - Qorvo - 3D model - Small Outline No-lead - 6-Pin 2 x 2 mm DFN Package
click to zoom

QPD0005TR13 Details

  • Manufacturer Part Number:

    QPD0005TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.49.70.80

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.7

  • Configuration:

    SINGLE

  • FET Technology:

    HIGH ELECTRON MOBILITY

  • Highest Frequency Band:

    C BAND

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    DEPLETION MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Gain-Min (Gp):

    16.8 dB

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    GALLIUM NITRIDE

QPD0005TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The QPD0005TR13 has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the opposite side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
  • While the datasheet specifies an operating frequency range of DC to 5 GHz, the device can be used up to 6 GHz with some degradation in performance. However, it's essential to evaluate the device's performance at the desired frequency and ensure it meets the system requirements.
  • The recommended biasing conditions for QPD0005TR13 are Vd = 5V, Id = 100 mA, and Vg = 0V to 2V. However, the optimal biasing conditions may vary depending on the specific application and frequency of operation. It's recommended to consult the application note AN-2171 for more information.
  • The QPD0005TR13 has an ESD rating of Class 1A (>250 V) per the Human Body Model (HBM) and Class M1 (>125 V) per the Machine Model (MM). It's essential to follow proper ESD handling procedures to prevent damage to the device.
