A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The QPD0030 should be placed near the antenna, and the RF traces should be kept short and away from digital lines.
The antenna design should be optimized for the specific frequency band and application. A 50-ohm antenna impedance is recommended, and the antenna should be matched to the QPD0030's output impedance. Simulation tools like HFSS or CST can be used to optimize the antenna design.
The QPD0030 can handle up to 2W of input power, but the maximum power handling capability depends on the specific application and operating conditions. It's recommended to derate the power handling capability based on the operating frequency, temperature, and other factors.
The QPD0030 requires a bias voltage of 3.3V to 5V, and the bias current should be limited to 10mA. A voltage regulator or a low-dropout regulator (LDO) can be used to regulate the bias voltage. The bias voltage should be decoupled with a 10uF capacitor to ensure stability.
The typical noise figure of QPD0030 is around 2.5dB, but it can vary depending on the operating frequency, temperature, and other factors. The noise figure can be improved by optimizing the PCB layout, using a low-noise amplifier, and minimizing the number of components in the signal path.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPD0030 Overview

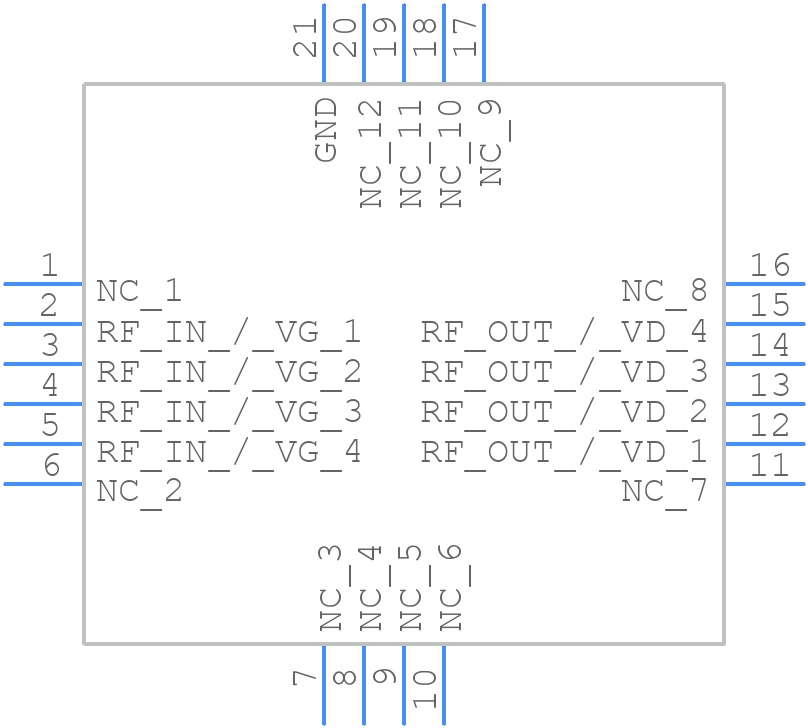

Use the download button to access the QPD0030 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD00,
or try a keyword search, such as RF Power Field-Effect Transistors
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
