QPD0050SR - Qorvo

Description: Operating Frequency Range: DC to 3.6 GHz • Operating Drain Voltage: +48 V • Maximum Output Power (PSAT): 79.4 W (1) • Maximum Drain Efficiency: 77.9% (1) • Efficiency-Tuned P3dB Gain: 19.4 dB (1) • Surface Mount Plastic Package

Download QPD0050SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

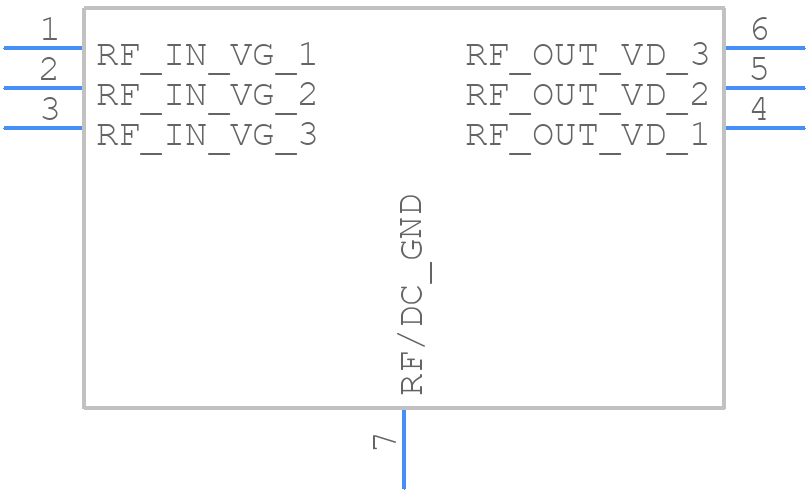

QPD0050SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD0050SR - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-6_2024-1
click to zoom
3D Models
QPD0050SR - Qorvo - 3D model - Small Outline No-lead - DFN-6_2024-1
click to zoom

QPD0050SR Details

  • Manufacturer Part Number:

    QPD0050SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A991

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-11-29

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

QPD0050SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • QPD0050SR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the other side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
  • While the datasheet specifies an operating frequency range of DC to 5 GHz, QPD0050SR can actually operate up to 6 GHz with some degradation in performance. However, it's essential to consult with Qorvo's application engineers to determine the feasibility of operating at higher frequencies.
  • The recommended biasing scheme for QPD0050SR is a 2-wire biasing configuration, where the drain voltage (Vd) is set to 5V and the gate voltage (Vg) is set to 0.5V to 1.5V, depending on the application. It's essential to follow the biasing scheme recommended in the datasheet to ensure optimal performance and prevent damage to the device.
  • The maximum input power that QPD0050SR can handle is 25 dBm. Exceeding this power limit can cause damage to the device or affect its performance. It's essential to ensure that the input power is within the recommended limits to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD0050SR Overview

Use the download button to access the QPD0050SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD00, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
