QPD0050TR7 - Qorvo

Description: DC - 3.6 GHz, 75 Watt, 48 Volt GaN RF Power Transistor

Download QPD0050TR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

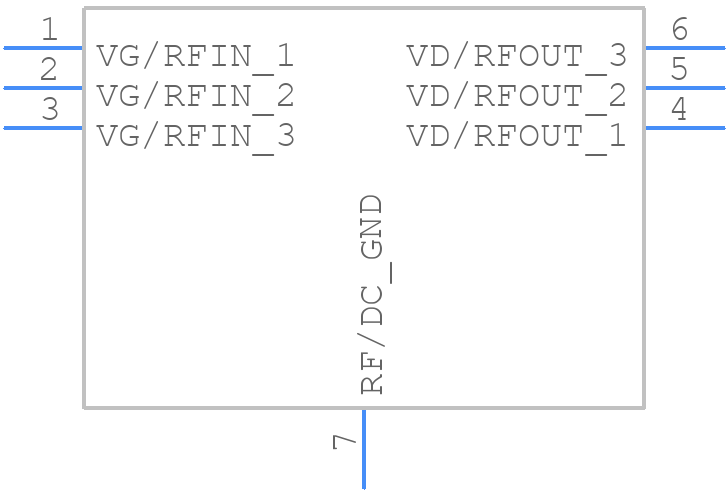

Symbol
QPD0050TR7 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD0050TR7 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-06
click to zoom
3D Models
QPD0050TR7 - Qorvo - 3D model - Small Outline No-lead - DFN-06
click to zoom

QPD0050TR7 Details

  • Manufacturer Part Number:

    QPD0050TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A991

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-11-29

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

QPD0050TR7 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • QPD0050TR7 has a thermal pad on the bottom of the package, which needs to be connected to a thermal ground plane on the PCB. A thermal via array or a copper pour can be used to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • While the datasheet specifies an operating frequency range of DC to 5 GHz, QPD0050TR7 can be used up to 6 GHz with some degradation in performance. However, it's essential to evaluate the device's performance at the desired frequency and ensure it meets the system requirements.
  • The recommended biasing conditions for QPD0050TR7 are Vd = 5 V, Id = 100 mA, and Vg = 0.5 V. However, the optimal bias point may vary depending on the specific application and frequency of operation. It's recommended to consult the datasheet and application notes for more information.
  • QPD0050TR7 has an ESD rating of Class 1A (>250 V) per the Human Body Model (HBM) and Class M1 (>125 V) per the Machine Model (MM). It's essential to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD0050TR7 Overview

Use the download button to access the QPD0050TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD00, or try a keyword search, such as RF Power Field-Effect Transistors
