QPD0060SR - Qorvo

Description: W-CDMA / LTE • Macrocell Base Station Driver • Microcell Base Station • Small Cell Final Stage • Active Antenna • General Purpose Applications

Download QPD0060SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

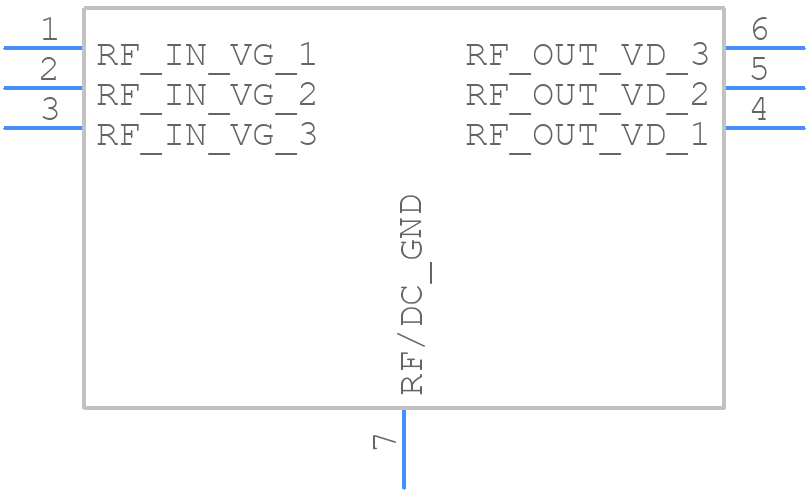

QPD0060SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD0060SR - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-6_2024-1..
click to zoom
3D Models
QPD0060SR - Qorvo - 3D model - Small Outline No-lead - DFN-6_2024-1..
click to zoom

QPD0060SR Details

  • Manufacturer Part Number:

    QPD0060SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-06

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD0060SR Overview

Use the download button to access the QPD0060SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD00, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
