Part Image

QPD1004ASR - Qorvo

Description: 25W, 30-1200 MHz, GaN RF Input-Matched Transistor,30MHz to 1400MHz,50V,25W 7.2 mA -65 to +150 °C

Download QPD1004ASR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

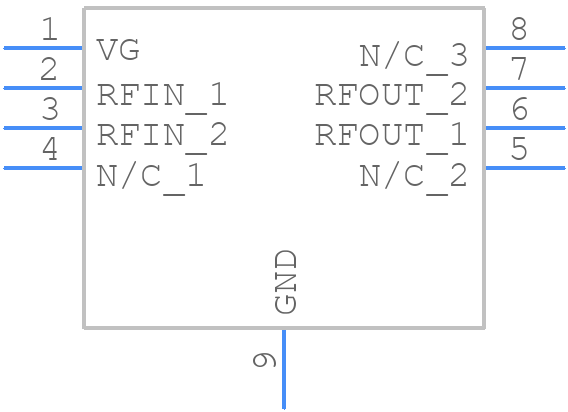

QPD1004ASR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD1004ASR - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 x 5 x 0.85mm DFN Package
click to zoom
3D Models
QPD1004ASR - Qorvo - 3D model - Small Outline No-lead - 6 x 5 x 0.85mm DFN Package
click to zoom

QPD1004ASR Details

  • Manufacturer Part Number:

    QPD1004ASR

  • Manufacturer:

    Qorvo

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD1004ASR Overview

Use the download button to access the QPD1004ASR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
