A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The QPD1009 should be placed near the antenna, and the RF traces should be kept short and 50-ohm matched.
Optimization involves selecting the right matching network, adjusting the bias voltage, and optimizing the antenna design. Qorvo provides a reference design and application notes to help with this process.
The QPD1009 can handle up to 38 dBm of input power, but the maximum power handling depends on the specific application and operating conditions. It's recommended to consult with Qorvo's application engineers for specific guidance.
Follow Qorvo's recommended assembly and soldering guidelines, and ensure the device is properly encapsulated to prevent moisture ingress. Additionally, operate the device within its recommended temperature range and avoid exceeding its maximum ratings.
Yes, but it requires additional impedance matching to ensure optimal performance. Qorvo provides guidance on impedance matching and can provide custom matching networks upon request.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPD1009 Overview

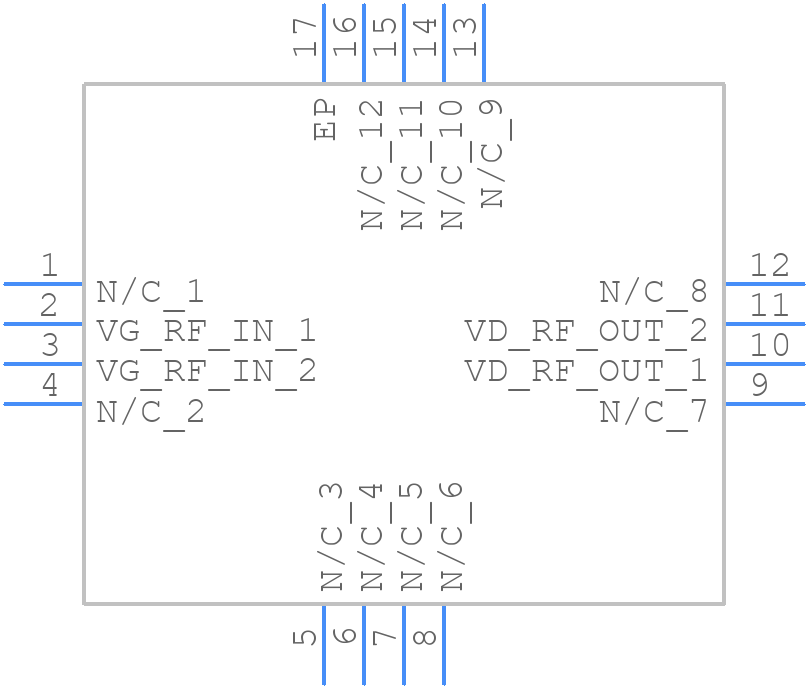

Use the download button to access the QPD1009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10,
or try a keyword search, such as RF Power Bipolar Transistors
