QPD1010 - Qorvo

Description: GaN FETs DC-4GHz 10W 28-50V SSG 25dB PAE 70% GaN DC to 4 GHz Operating Voltage: 50 V +145 V -7 to +2 V,−40 to +150 °C

Download QPD1010 Model

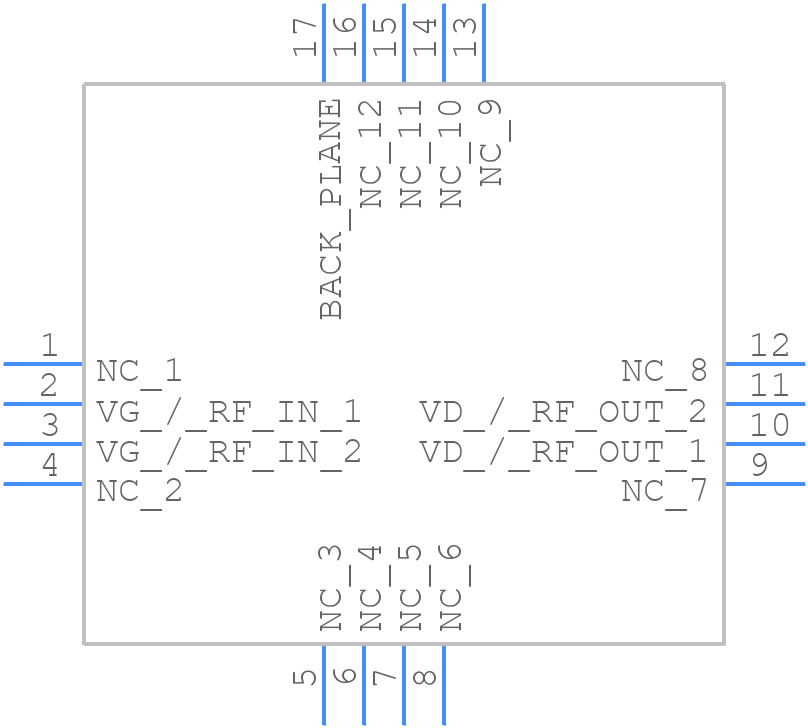

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPD1010 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Pin QFN (3 x 3 x 0.85 mm)
click to zoom
3D Models
QPD1010 - Qorvo  - 3D model - Quad Flat No-Lead - 16 Pin QFN (3 x 3 x 0.85 mm)
click to zoom

QPD1010 Details

  • Manufacturer Part Number:

    QPD1010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    Qorvo

  • YTEOL:

    5.12

  • Case Connection:

    SOURCE

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    1.15 A

  • FET Technology:

    HIGH ELECTRON MOBILITY

  • Highest Frequency Band:

    S BAND

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Number of Elements:

    1

  • Number of Terminals:

    16

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON CARBIDE

QPD1010 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The QPD1010 should be placed near the edge of the board to minimize the distance to the antenna.
  • The antenna design should be optimized for the specific frequency band of operation. A 50-ohm antenna impedance is recommended, and the antenna should be placed at least 10 mm away from other components to minimize interference.
  • The QPD1010 can handle up to 33 dBm of input power, but it's recommended to operate at a maximum of 30 dBm to ensure reliable performance and prevent damage to the device.
  • Check for proper PCB layout, antenna design, and component placement. Verify that the device is properly biased and that the input and output impedances are matched. Use a spectrum analyzer to measure the gain and noise figure, and compare with the datasheet specifications.
  • Yes, QPD1010 can be used in a push-pull configuration to increase the power handling capability. However, this requires careful design and layout to ensure proper impedance matching and minimal losses.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD1010 Overview

Use the download button to access the QPD1010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
