QPD1013SR - Qorvo

Description: DC - 2.7 GHz, 150 Watt, 65 Volt GaN RF Transistor

Download QPD1013SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

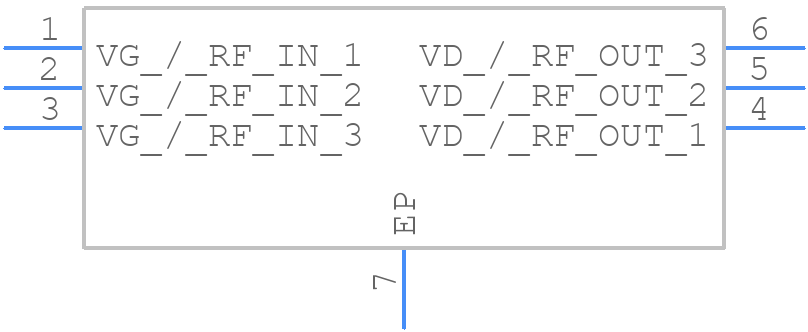

Symbol
QPD1013SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPD1013SR - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-6S
click to zoom
3D Models
QPD1013SR - Qorvo - 3D model - Small Outline No-lead - DFN-6S
click to zoom

QPD1013SR Details

  • Manufacturer Part Number:

    QPD1013SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

QPD1013SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The choice of biasing resistors depends on the specific application and operating conditions. Qorvo recommends using a resistor value between 1 kΩ to 10 kΩ for the biasing network, and provides a calculation method in their application note AN-2171 to determine the optimal value.
  • The QPD1013SR is rated for operation from -40°C to +125°C, but Qorvo recommends derating the device for reliable operation above 100°C. Consult the datasheet for specific derating guidelines.
  • Qorvo recommends following good EMC design practices, such as using a shielded enclosure, minimizing trace lengths, and using filtering components to reduce electromagnetic radiation. Additionally, Qorvo provides EMC guidelines in their application note AN-2171.
  • Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering the QPD1013SR, which specifies a peak temperature of 260°C and a dwell time of 30 seconds.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPD1013SR Overview

Use the download button to access the QPD1013SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPD10, or try a keyword search, such as RF Power Field-Effect Transistors

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
